Basic Info.
Product Description
Quickly Details:
Type:Conventional Pipe-up Growing Line/Tank Fit up Rolls
Brand:MISA
Condition:100% brand new
Model number:HGK
Capacity:5Ton - 1000Ton
Consist: (1) Drive unit , (1) Idler unit , (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)
Product Photo:
Product Parameter:
| Type | Max loading (kg) | Vessel diameter(mm) | Dia. and width of the wheel(mm) | Roller linear velocity(m/h) 6-60 | Power of motor(kw) | |
| Rubber rollers | Metal rollers | |||||
| HGKS-5 | 5,000 | Φ250-2300 | Φ250×100 | 2×Φ240×20 | 2X0.37 | |
| HGKS-10 | 10,000 | Φ320-2800 | Φ300×120 | 2×Φ290×25 | 2X0.55 | |
| HGKS-20 | 20,000 | Φ500-3500 | Φ350×120 | 2×Φ340×30 | 2X0.75 | |
| HGKS-40 | 40,000 | Φ600-4200 | Φ400×120 | 2×Φ390×40 | 2X1.5 | |
| HGKS-60 | 60,000 | Φ750-4800 | Φ450×120 | 2×Φ440×50 | 2X2.2 | |
| HGKS-80 | 80,000 | Φ850-5000 | Φ500×120 | 2×Φ490×60 | 2X3 | |
| HGKS-100 | 100,000 | Φ1000-5500 | Φ500×120 | 2×Φ490×80 | 2X3 | |
| HGK-S150 | 150,000 | Φ1000-6000 | / | Φ620×220 | 2X4 | |
| HGKS-250 | 250,000 | Φ1800-7500 | / | Φ660×260 | 2X5.5 | |
| HGKS-500 | 500,000 | Φ1800-8000 | / | Φ750×400 | 2X7.5 | |

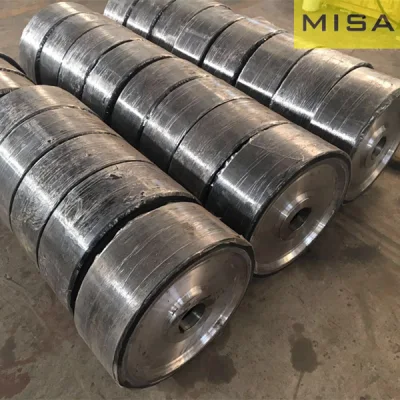

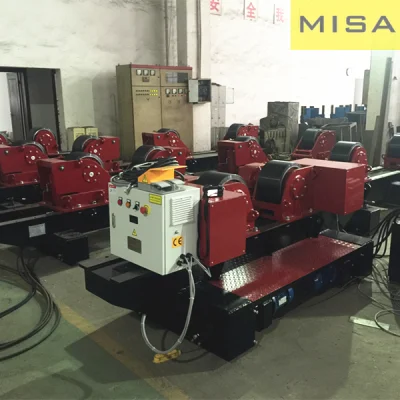

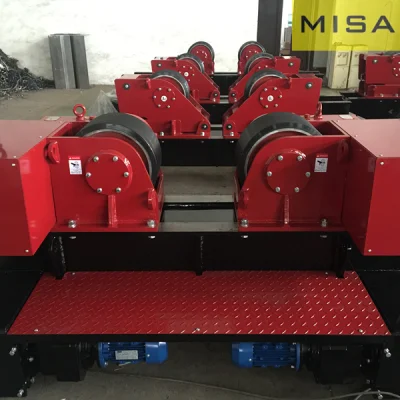

Detail Photo:
Product Description:

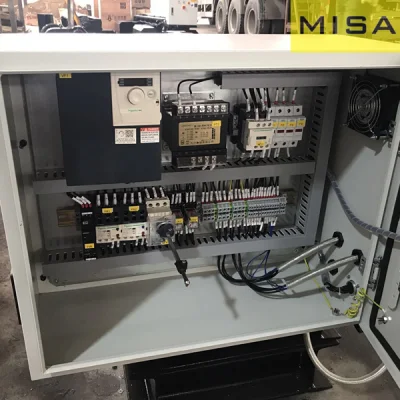

Welding rotator is used to weld,polish and assemble the cylinder-shells,and to line the shells with rubber.It can be aligned by itself according to the size of the shell, it can be controlled with AC frequency converter,and the linear velocity is displayed by the digital.The distance between the wheels ,could adjust by bolt or manual lead screw.To realize the diameter could suit for the workpiece.
We also can design the customize various types of the welding rotator in accordance with the customers requirement.
1. Pressure vessels.
2. Pipe manufacturing industries
3. Wind power fabrication
4. Cylindrical tank's welding, polishing, rubber lining, assembling ,etc
5. Chemical & fuel storage tank fabrication
6. Any heavy cylindrical job
Packing and Shipment:
Kindly Noted:
1. Model from 5T-100T, others please let us know.
2. One set of welding turning rolls include one drive & one idler, also customer can choose other combinations.
3. Voltage standard is 380V, 50HZ, 3PH. Other voltage please kindly let us know.

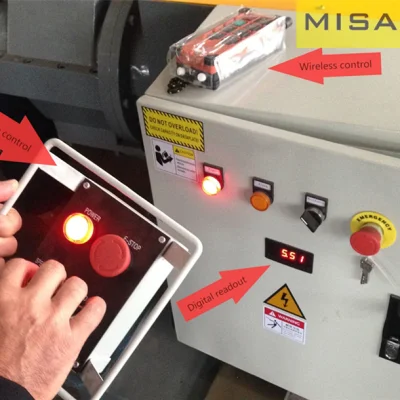

4. Control panel is wired control, or you can choose wireless control.
5. If need more special requirements ,we'll study with our engineer.
6.The revolve adopt A.C. Inverter motor driving.
