Basic Info.
Model NO.
HGK-150
Wheel Width
280mm
Vessel Diameter
800-5000mm
Wheel Velocity
6-60m/H
Power of Motor
2*3kw
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Load 150, 000kg
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Month
Product Description
Load 150,000kg Dual Polyurethane Wheel Welding Rotator, Turning Rolls Welding Machine
Quickly Details:
Type:Conventional Pipe-up Growing Line/Tank Fit up Rolls
Brand:MISA
Condition:100% brand new
Model number:HGK
Capacity:5Ton - 1000Ton
Consist: (1) Drive unit , (1) Idler unit , (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)

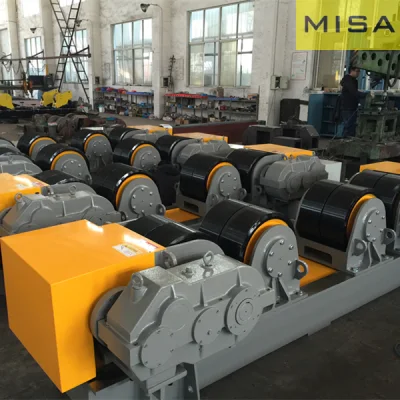

Product Photo:
Product Parameter:
| Type | Max loading (kg) | Vessel diameter(mm) | Dia. and width of the wheel(mm) | Roller linear velocity(m/h) 6-60 | Power of motor(kw) | |
| Rubber rollers | Metal rollers | |||||
| HGKS-5 | 5,000 | Φ250-2300 | Φ250×100 | 2×Φ240×20 | 2X0.37 | |
| HGKS-10 | 10,000 | Φ320-2800 | Φ300×120 | 2×Φ290×25 | 2X0.55 | |
| HGKS-20 | 20,000 | Φ500-3500 | Φ350×120 | 2×Φ340×30 | 2X0.75 | |
| HGKS-40 | 40,000 | Φ600-4200 | Φ400×120 | 2×Φ390×40 | 2X1.5 | |
| HGKS-60 | 60,000 | Φ750-4800 | Φ450×120 | 2×Φ440×50 | 2X2.2 | |
| HGKS-80 | 80,000 | Φ850-5000 | Φ500×120 | 2×Φ490×60 | 2X3 | |
| HGKS-100 | 100,000 | Φ1000-5500 | Φ500×120 | 2×Φ490×80 | 2X3 | |
| HGK-S150 | 150,000 | Φ1000-6000 | / | Φ620×220 | 2X4 | |
| HGKS-250 | 250,000 | Φ1800-7500 | / | Φ660×260 | 2X5.5 | |
| HGKS-500 | 500,000 | Φ1800-8000 | / | Φ750×400 | 2X7.5 | |

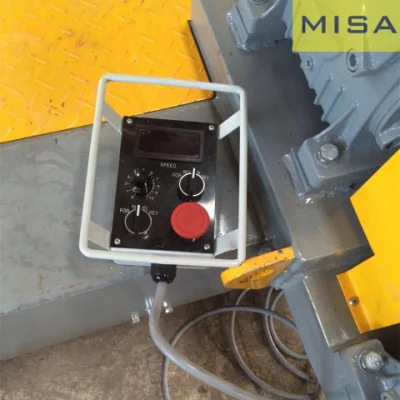

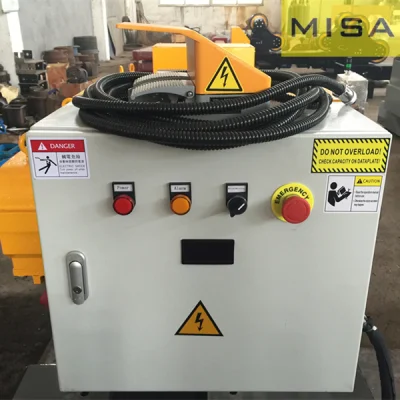

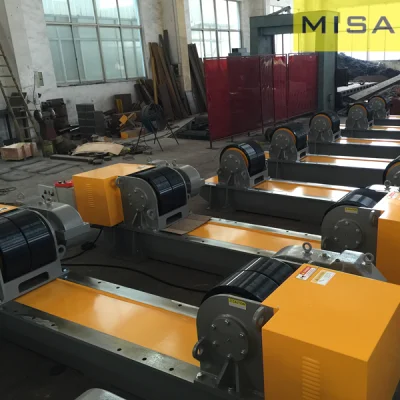

Detail Photo:
Product Description:
Welding rotators are similar to positioners, in that it's a mechanical means to rotate cylindrical vessels. They minimise handling, increase efficiency, and dramatically improve the quality of workmanship from welders of all skill levels. MISA can supply conventional and self-aligning rotators to suit various sizes of weldments across a variety of sectors. Any steelworks with cylindrical vessels, be it small diameter piping to large industrial cylindrical vessels for windtower production, a rotator will be beneficial, sometimes a necessity. If the weldment is cylindrical, a rotator will make a huge difference to most welding processes including, SAW, TIG, MIG and ARC.
Application:
1. Pressure vessels.
2. Pipe manufacturing industries
3. Wind power fabrication
4. Cylindrical tank's welding, polishing, rubber lining, assembling ,etc
5. Chemical & fuel storage tank fabrication
6. Any heavy cylindrical job
Packing and Shipment:
Kindly Noted:
1. Model from 5T-100T, others please let us know.
2. One set of welding turning rolls include one drive & one idler, also customer can choose other combinations.
3. Voltage standard is 380V, 50HZ, 3PH. Other voltage please kindly let us know.
4. Control panel is wired control, or you can choose wireless control.
5. If need more special requirements ,we'll study with our engineer.
6.The revolve adopt A.C. Inverter motor driving.
