Basic Info.
Model NO.
FD30
Load center
>500mm
Lift height
3000~5000mm
Condition
New
Weight
4250kg
Engine
Isuzu Engine, Chinese Engine
Fork Positioner Function
Standard Equipped
Color
Customized
Mast
Duplex Mast (Triplex Mast Optional)
Item
10 Ton Lifting Capacity Forklift
Optional
Side Shifter, Sealed Cab, High Mast, etc
Certification
CE/ISO
Transmission
Hydraulic
Packing &Shipping
Two Units (for 3 Ton ) Fixed Container
Turning Radius
2390
Transport Package
Nude Packing, Container
Specification
2730*1220*2145mm
Trademark
LTMG
Origin
China
HS Code
8427209000
Production Capacity
300sets/Month
Product Description
LTMG diesel forklift FD30 3ton 3000kg forklift with hydraulic system and attachments for sale
Rotator attachment:
Rolling over 360°. Widely used in food industry, chemical industry, sanitation industry, recycle industry, smelt casting industry, etc.
Features:
1.Proven durable construction design,unique rotating drive system,meet the high strength continuous operation
2.Strong rotating driving torque achieved the stable and reliable rotating function
3.Hydraulic motor fixed with reversible,hydraulic lock,any angle position of lock function
Paper roll clamp attachment:
Paper roll clamps designed for mills, warehouses, printers, newspaper publishers and converters
Features:
1.Rational designed,compact structure,excellent driver visibility.easy operating,improve work efficiency
2.Thin arm profile and smooth arm greatly eases roll breakout and permits close stacking.
3.Continuous 360° rotation,any angle position of lock function,revolving 90° to 180°
4.Hydraulic retention of cylinder valves is to ensure reliable lamping of long distance transportation
Bale clamp attachment:
Bale calmp efficiently and economically handle nearly any type of baled products including cotton, wool, synthetic, textile bales. Corrugated, newsprint, rag, hay, metal and other scrap bales. High efficiency and economy to handle in without platform condition.
Features:
1.Proven durable T-beam arm aluminium frame construction
2.Superior arm-slide bearing for extended service life
3. Ribs provide secure grip and give driver good tip handing and bale spinning capabilities
4.Regenerative hydraulic valving for optimal arm speed
5.Excellent driver visibility
Various attachments for your choose:
Standard Configuration of our Diesel Forklift
1. original japan ISUZU engine
2. Advanced Hydraulic AutomaticTransmission
3. the Casting-type steering bridge which More than 8 years of service life than ordinary welded bridge
4. Electric-hydraulic Directional Control Valve
5.Steering priority system and improve work efficiency at work
6. Duplex Mast Lifting Height 3000mm
7. PneumaticTyres
8.original Toyota seat Comfortable Seat with Armrest and Safe-belt ,LED Light ect.
9.Shimadzu pump and valve,Eaton pipe ,Nok hydraulic cylinder seals
10. A set of spare parts and some quick -wearing parts free for customers
Optional Equipments
1.Chinese engine ,Mitsubishi engine ,Yanmar engine,EPA ,EuroIII engine
2.Mechanical transmission,Okamura transmission
3.Lifting Height 3m-7m
4.Full-free Duplex or Triplex Mast
5.Side Shift, Solid Tyres, fork positiner ,Suspension Seat
6.Driver's Cabin, ROPS Cabin ,Driving recorder Customized Color and air -conditioner etc.
7.attachment: paper roll clamp , bale clampe ,ratator , block clamp ect.
The specification of China Forklift 2.5 Ton 3 Ton 3.5 ton Attachment Forklift with Rotator/Paper Roll Clamp /Bale Clamp for sale

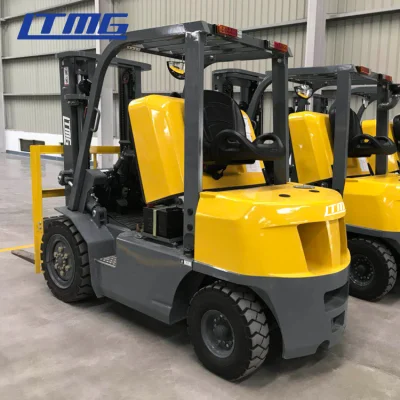

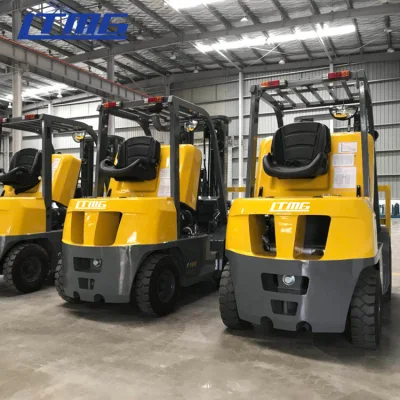

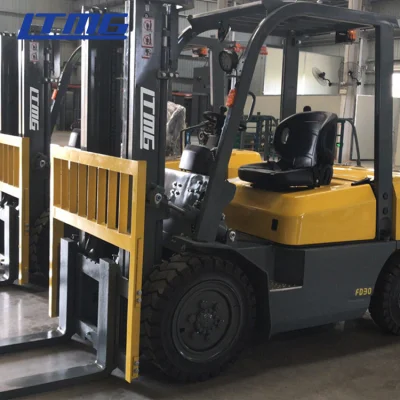

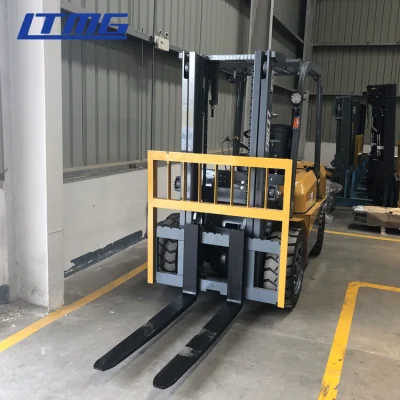

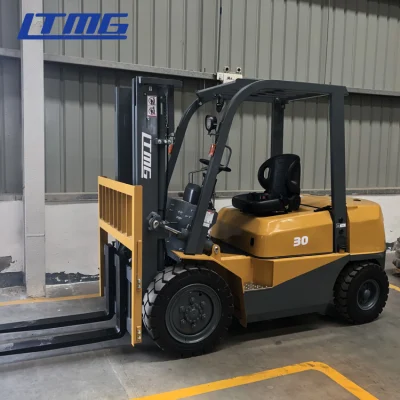

Detail photo of forklift
Packaging & shipping
LTMG sales service
LTMG always treat after-sale service as important as sale.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.Detail clauses and policies please check our website and product certificate.
Factory Show:
LTMG Customers:
Rotator attachment:
Rolling over 360°. Widely used in food industry, chemical industry, sanitation industry, recycle industry, smelt casting industry, etc.
Features:
1.Proven durable construction design,unique rotating drive system,meet the high strength continuous operation
2.Strong rotating driving torque achieved the stable and reliable rotating function
3.Hydraulic motor fixed with reversible,hydraulic lock,any angle position of lock function
Paper roll clamp attachment:
Paper roll clamps designed for mills, warehouses, printers, newspaper publishers and converters
Features:
1.Rational designed,compact structure,excellent driver visibility.easy operating,improve work efficiency
2.Thin arm profile and smooth arm greatly eases roll breakout and permits close stacking.
3.Continuous 360° rotation,any angle position of lock function,revolving 90° to 180°
4.Hydraulic retention of cylinder valves is to ensure reliable lamping of long distance transportation
Bale clamp attachment:
Bale calmp efficiently and economically handle nearly any type of baled products including cotton, wool, synthetic, textile bales. Corrugated, newsprint, rag, hay, metal and other scrap bales. High efficiency and economy to handle in without platform condition.
Features:
1.Proven durable T-beam arm aluminium frame construction
2.Superior arm-slide bearing for extended service life
3. Ribs provide secure grip and give driver good tip handing and bale spinning capabilities
4.Regenerative hydraulic valving for optimal arm speed
5.Excellent driver visibility
Various attachments for your choose:
Standard Configuration of our Diesel Forklift
1. original japan ISUZU engine
2. Advanced Hydraulic AutomaticTransmission
3. the Casting-type steering bridge which More than 8 years of service life than ordinary welded bridge
4. Electric-hydraulic Directional Control Valve
5.Steering priority system and improve work efficiency at work
6. Duplex Mast Lifting Height 3000mm
7. PneumaticTyres
8.original Toyota seat Comfortable Seat with Armrest and Safe-belt ,LED Light ect.
9.Shimadzu pump and valve,Eaton pipe ,Nok hydraulic cylinder seals
10. A set of spare parts and some quick -wearing parts free for customers
Optional Equipments
1.Chinese engine ,Mitsubishi engine ,Yanmar engine,EPA ,EuroIII engine
2.Mechanical transmission,Okamura transmission
3.Lifting Height 3m-7m
4.Full-free Duplex or Triplex Mast
5.Side Shift, Solid Tyres, fork positiner ,Suspension Seat
6.Driver's Cabin, ROPS Cabin ,Driving recorder Customized Color and air -conditioner etc.
7.attachment: paper roll clamp , bale clampe ,ratator , block clamp ect.
The specification of China Forklift 2.5 Ton 3 Ton 3.5 ton Attachment Forklift with Rotator/Paper Roll Clamp /Bale Clamp for sale
| Model | UNIT | FD20 | FD25 | FD30 | FD35 | |||||
| Performance | Power Unit | Diesel | Diesel | Diesel | Diesel | |||||
| Operator Type | Driver/seat | Driver/seat | Driver/seat | Driver/seat | ||||||
| Rated Capacity | kg | 2000 | 2500 | 3000 | 3500 | |||||
| Load Center | mm | 500 | 500 | 500 | 500 | |||||
| Max. Lifting Height | mm | 3000 | 3000 | 3000 | 3000 | |||||
| Mast Tilting Angle (Fwd/Bwd) | deg | 6/12 | 6/12 | 6/12 | 6/12 | |||||
| Free Lift Height | mm | 140 | 140 | 145 | 150 | |||||
| Turning Radius | mm | 2150 | 2210 | 2395 | 2415 | |||||
| Lifting Speed (Loaded/Unloaded) | mm/s | 560/580 | 550/580 | 480/500 | 400/450 | |||||
| Lowering Speed (Loaded/Unloaded) | mm/s | 480/450 | 490/450 | 420/400 | 400/370 | |||||
| Travelling Speed (Loaded/Unloaded) | km/h | 20/21 | 20/21 | 20/21 | 20/21 | |||||
| Max. Gradeability (Loaded) | % | 21 | 21 | 21 | 21 | |||||
| Max. Drawbar Pull (Loaded) | n | 14 | 14 | 17 | 17 | |||||
| Dimensions | Overall length (without fork) | mm | 2570 | 2590 | 2730 | 2770 | ||||
| Overall Width | mm | 1160 | 1160 | 1220 | 1220 | |||||
| Overhead Guard Height | mm | 2125 | 2125 | 2145 | 2145 | |||||
| Fork Size (LxWxT) | mm | 1070x120x40 | 1070x120x40 | 1070x125x45 | 1070x125x45 | |||||
| Mast Height (Fork lowered) | mm | 2075 | 2075 | 2095 | 2175 | |||||
| Truck Weight | kg | 3440 | 3765 | 4250 | 4500 | |||||
| Tyre Size (Front/Rear) | 7.00-12-12PR/6.5-9-10PR | 7.00-12-12PR/6.5-9-10PR | 28×9-15-14PR/6.5-10-10PR | 28×9-15-14PR/6.5-10-10PR | ||||||
| Engine | Brand | ISUZU | XINCHAI | ISUZU | XINCHAI | ISUZU | XINCHAI | ISUZU | XINCHAI | |
| Model | C240 | C490 | C240 | C490 | C240 | C490 | 4JG2 | C495 | ||
| Rated Power | kw/rpm | 35.4/2500 | 40/2650 | 35.4/2500 | 40/2650 | 35.4/2500 | 35.4/2500 | 40/2650 | 42/2650 | |
| Rated torque | n-m/rpm | 137.7/1800 | 160/1600 | 137.7/1800 | 160/1600 | 137.7/1800 | 160/1600 | 186/1800 | 174/1600 | |
| Number of cylinder | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||
| Displacement | 2.36 | 2.67 | 2.36 | 2.67 | 2.36 | 2.67 | 3.06 | 2.8 | ||
Detail photo of forklift
Packaging & shipping
LTMG sales service
LTMG always treat after-sale service as important as sale.
All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.Detail clauses and policies please check our website and product certificate.
Factory Show:
LTMG Customers:
