Basic Info.
Model NO.
LH2020
Elevation Speed
0.3m/Min
Traverse Speed
0.12-1.2m/Min
Motor Power
0.91 Kw
Total Height
3.4 M
Rail C to C
1052 mm
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Vertical Stroke 2M
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Month
Product Description
2M x 2M Type Column And Boom for Cylinder Welding Vertical Stroke 2M Mainpulator Equipment
Quick Details:
Type:Welding Manipulator/ Welding Column And Boom
Condition:100% brand new
Place of origin:Wuxi China(Mainland)
Brand:MISA
Usage:Circular Welding Seam
Voltage:110V-600V
Dimensions and weight:According to the model

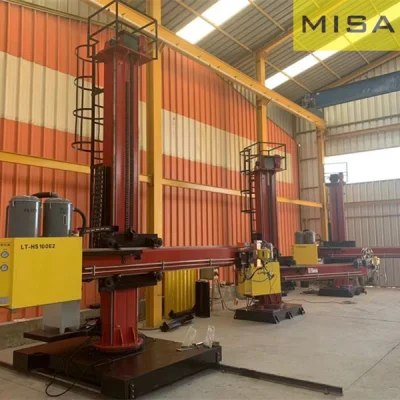

Product Photo:
Specifications:
| Model | Boom | Column | Traveking cart | Power KW | |||||
| Vertical stroke(A)m | Horizontal stroker(B)m | Elevation speed m/min | Traverse speed m/min | Max load at extremity kg | Total height(C)m | Dimensions (D)×(E)×H m | Rail c to c(F)mm | ||
| LH1515 | 1.5 | 1.5 | 0.3 | 0.12~1.2 | 100 | 2.9 | 1.25×1.2×0.2 | 1052 | 0.91 |
| LH2020 | 2.0 | 2.0 | 0.3 | 100 | 3.4 | 1.25×1.2×0.2 | 1052 | 0.91 | |
| LH3030 | 3.0 | 3.0 | 1.0 | 200 | 5.5 | 2.4×1.9×0.4 | 1600 | 2.75 | |
| LH3040 | 3.0 | 4.0 | 1.0 | 200 | 5.5 | 2.4×1.9×0.4 | 1600 | 2.75 | |
| LH4040 | 4.0 | 4.0 | 1.0 | 200 | 6.5 | 2.4×1.9×0.4 | 1600 | 2.75 | |
| LH4050 | 4.0 | 5.0 | 1.0 | 200 | 6.5 | 2.4×1.9×0.4 | 1600 | 2.75 | |
| LH5050 | 5.0 | 5.0 | 0.9 | 300 | 7.8 | 2.6×2.1×0.5 | 1798 | 3.5 | |
| LH5060 | 5.0 | 6.0 | 0.9 | 300 | 7.8 | 2.6×2.1×0.5 | 1798 | 3..5 | |
| LH6060 | 6.0 | 6.0 | 0.9 | 300 | 9.7 | 2.6×2.1×0.5 | 1798 | 3.5 | |

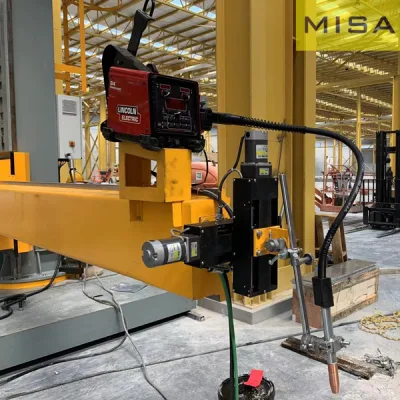

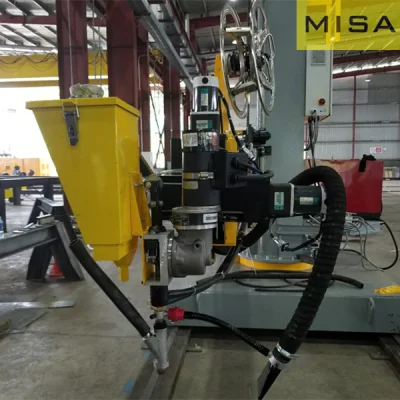

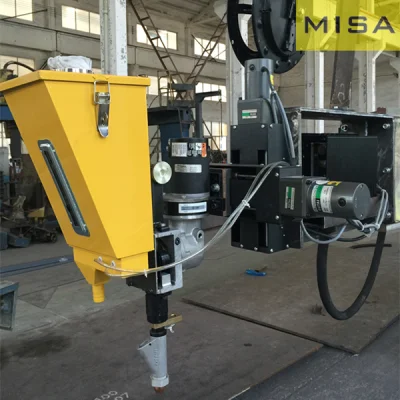

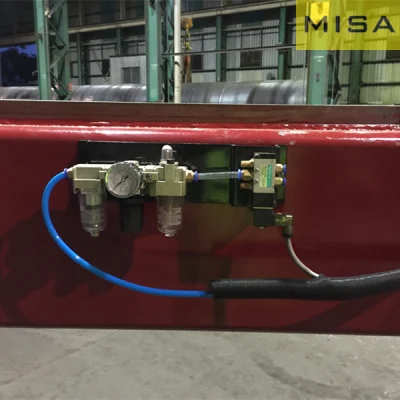

Detail Photo:
Product description:
Pipe welding manipulator is the automatic welding equipment composed together with welding power. It can be used together with welding rotator or welding positioner, and widely used in industries as boiler, pressure vessel, petro-chemical machinery for welding of inner and outer longitudinal seams and circumferential seams. It features in advanced structure complete functioneasy operation, which ensures improving of welding quality.
Kindly Noted:
1. Model from LH1515-LH8080, please confirmed before you order.
2. Three structure of the column and boom: Stationary ; Stationary and revolve ; Moving and revolve , Please confirmed before you order.
3. Voltage standard is 380V , 50HZ , 3PH. We can customized other voltage
4. We can design that the electric box control, the manipulator and rotator together
5. With cross turning for the welding head.
6. We could equip Welding machine(SAW, TIG, MIG) and flux recovery machine.
Packing and Shipment:
Brand using:
1. Inverter is made in USA Danfoss / Taiwan Delta /Japan Yaskawa
2. Motor Brand is UK Invertek /Taiwan Qinwei / Siemens
3. Element is made by Schneider /Siemens/Fuji
4. Reducer is made by Kaibo/Guomao
5. Bearing is made by NTN / Harbin
What can we do for you:
1. Give you high quality products.
2. Give you five-star price.
3. Give you suitable recommendation.
4. Give you good after-service.
5. Give you professional technical guide.
