Factory-Manufactured Light-Duty Welding Manipulator for Pipe Welding

Basic Info.

Model NO.

2-48"

Suitable for Pipes

2-48"

Brand Name

Naec

Suitable for Material

CS/Ss/as

Welding Process

TIG/MIG/Saw

Applicable Industries

Oil and Gas, Offshore Platform, Offshore/Onshore W

Place of Origin

Nanjing

Transport Package

Packed in Container

Specification

SGS, ISO9001

Trademark

NAEC

Origin

Nanjing, Jiangsu

HS Code

85153190

Production Capacity

200 Sets/Year

Product Description

NAEC-Provides Lean Fabrication Solution

Suitable for industries of: OIL AND GAS, REFINERY FACILITIES, OFFSHORE &SHIPBUILDING, POWER PLANT, ETC

Reference: CCC, L&T, AIM, Petrol Steel, THHE, MMHE, ETC.

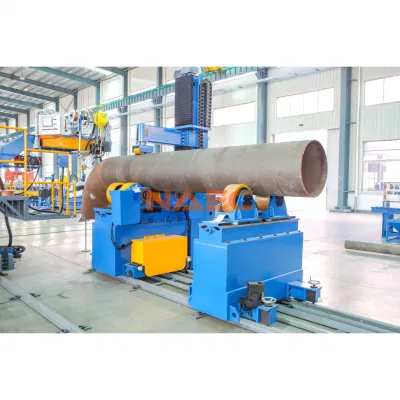

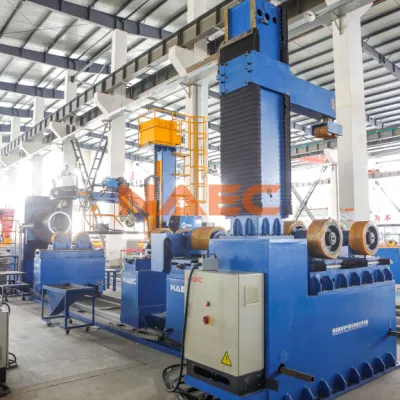

Light-duty manipulator

Features:

1.Light-duty manipulator can set up an automatic welding station when working together with turning table, positioner and pressure-head totator.

2. Suitable for pipes less than 48"

Pipe Spool Fabrication Machines

1		Pipe Cutting& Beveling All-in-one Machine >Suitable for pipes not larger than 8",max.thickness:20mm >Cutting efficiency:100times/8hrs >PLC control with automatic measuring to guarantee the same processing cycle >Widely used for small bore C.S/S.S production lines
2		High Speed Band-saw Cutting Machine >Three models available(16"type,24"type",48"type) >PLC system control;self-measuring function with precision:±0.5mm >Using hydraulic self-centering chuck >It only takes 6 minutes to cut a 24" pipe of 25mm thickness >Widely used for C.S/S.S production lines.
3		High Speed CNC Pipe End Beveling Machine >Automatic self-centering chuck >Single V,double V,U type bevel >Can be matched with pipe end turning devic >High speed beveling:for example,it only takes 2.5minutes to get a 37.5 degree bevel for a S.S pipe end(diameter :610mm,thickness:25mm) >Several models available:16",24",32",48"
4		Two / Multi- Axis CNC Flame/Plasma Cutting Machine >High efficient pipe cutting with automatic self-measuring function, pipe end beveling, intersection line profiling for both main and branch pipe. >Five/multi-axis cutting machine can profile more complicated outlines with various bevel type >Standard machine suitable for pipes nor larger than 24''
5		Multi-function Pipe Fitting-up Station >Suitable for flange,elbow,tee,reducer to pipe and special T-joint fitting-up. >Light-duty type(manual) and heavy-duty type(motorized) are available. >Different types available, 8" type, 24" type, 32" type, 48" type, 60" type
6		Automatic Pipe Welding Station >With two welding heads >TIG/MIG/SAW are optional >PLC system control & WPS programmed >Max. efficiency fo reach welding head can be 400D.I/8hrs even use TIG/MIG technology. >Different types available, 8" type, 24" type, 32" type, 48" type, 60" type
7		Conveyor Handling System >used for pipe convenient transporation during in pipe spool fabrication. >Its speed is adjustable between 2M to 20M/min.
