Basic Info.
Model NO.
PB28-3R-II
Pressure of Hydraulic System
28 MPa
Type of Hydraulic Oil
Hm46
Transport Package
Standard or According to Your Detailed Requirement
Trademark
Truemax
Origin
China
HS Code
8479109000
Production Capacity
3 PCS/Month
Packaging & Delivery
Package Size
2770.00cm * 275.00cm * 2134.00cm
Package Gross Weight
16200.000kg
Product Description
| ITEMS | UNITS | PB17B-3R-II | PB17D-3R | PB21B-3R | PB28A-3R-II | PB32A-3R-II | PB33A-4R-II | |||
| Performance | Max Radius of Placing Boom | m | 17 | 17 | 21 | 27.7 | 31.7 | 32.4 | ||
| Free standing Height | m | 2.7 | 2.9 | 3 | 21.3 | 21.3 | 21.3 | |||
| Slewing Range | / | 360° | 360° | 360° | 360° | 360° | 360° | |||
| Circumstance Temperature | ºC | -20~55 | -20~55 | -20~55 | -20~55 | -20~55 | -20~55 | |||
| Power(subject to Customer) | / | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | |||
| Boom | Delivery Pipeline Diameter | mm×mm | φ133×4.5 | φ133×4.5 | φ133×4.5 | φ133×4.5 | φ133×4.5 | φ133×4.5 | ||
| Delivery Hose Diameter | ″×mm | 5″×3000 | 5″×3000 | 5″×3000 | 5″×3000 | 5″×3000 | 5″×3000 | |||
| 1st Section | Length | m | 7.1 | 7.1 | 8.4 | 10.5 | 14.5 | 9.51 | ||
| Articulation | / | 0°~86° | 0°~86° | 0°~90° | 0°~86° | 0°~86° | 0°~86° | |||
| 2nd Section | Length | m | 5.5 | 5.5 | 6.9 | 9.2 | 9.2 | 7.56 | ||
| Articulation | / | 0°~180° | 0°~180° | 0°~180° | 0°~180° | 0°~180° | 0°~180° | |||
| 3rd Section | Length | m | 4.5 | 4.5 | 5.7 | 8 | 8 | 7.65 | ||
| Articulation | / | 0°~180° | 0°~180° | 0°~180° | 0°~180° | 0°~180° | 0°~180° | |||
| 4th Section | Length | m | / | / | / | / | / | 7.72 | ||
| Articulation | / | / | / | / | / | / | 0°~180° | |||
| Type of Hydraulic Oil | Circumstance Temperature 5ºC-55ºC | ºC | Hm46 Anti-wear hydraulic oil | Hm46 Anti-wear hydraulic oil | Hm46 Anti-wear hydraulic oil | Hm46 Anti-wear hydraulic oil | Hm46 Anti-wear hydraulic oil | Hm46 Anti-wear hydraulic oil | ||
| Circumstance Temperature -20ºC-5ºC | ºC | Hm32 Anti-wear hydraulic oil | Hm32 Anti-wear hydraulic oil | Hm32 Anti-wear hydraulic oil | Hm32 Anti-wear hydraulic oil | Hm32 Anti-wear hydraulic oil | Hm32 Anti-wear hydraulic oil | |||
| Motor | Power | kW | 5.5 | 5.5 | 7.5 | 11 | 11 | 18.5 | ||
| Hydraulic Pressure | Mpa | 25 | 25 | 28 | 28 | 28 | 30 | |||
| Mode of Slewing | / | Turbo Worm Drive | Turbo Worm Drive | Gear Slewing | Gear Slewing | Gear Slewing | Gear Slewing | |||
| Application scenario | / | Mobile | Wheel Type | Mobile | Floor Climbing or Shaft Cilmbing | Floor Climbing or Shaft Cilmbing | Floor Climbing or Shaft Cilmbing | |||
| Balance Arm | / | / | / | / | / | / | / | |||
| Total Weight | kg | 6500 | 7950 | 9150 | 16200 | 18150 | 20100 | |||
| Max Lifting Unit | kg | 1520 | 5850 | 5850 | 4100 | 4150 | 4800 | |||
| ITEMS | UNITS | PB38BT-4R-E | PB51AT-4R-E | |||
| Performance | Max Radius of Placing Boom | m | 38 | 51 | ||
| Free standing Height | m | 40 | 46 | |||
| Slewing Range | / | 360° | 360° | |||
| Circumstance Temperature | ºC | -20~55 | -20~55 | |||
| Power(subject to Customer) | / | 380V/50Hz | 380V/50Hz | |||
| Boom | Delivery Pipeline Diameter | mm×mm | φ133×4.5 | φ133×4.5 | ||
| Delivery Hose Diameter | ″×mm | 5″×3000 | 5″×3000 | |||
| 1st Section | Length | m | 14.91 | 21.5 | ||
| Articulation | / | 0°~86° | 0°~86° | |||
| 2nd Section | Length | m | 7.56 | 9.8 | ||
| Articulation | / | 0°~180° | 0°~180° | |||
| 3rd Section | Length | m | 7.65 | 9.8 | ||
| Articulation | / | 0°~180° | 0°~180° | |||
| 4th Section | Length | m | 7.72 | 9.9 | ||
| Articulation | / | 0°~180° | 0°~180° | |||
| Type of Hydraulic Oil | Circumstance Temperature 5ºC-55ºC | ºC | Hm46 Anti-wear hydraulic oil | Hm46 Anti-wear hydraulic oil | ||
| Circumstance Temperature -20ºC-5ºC | ºC | Hm32 Anti-wear hydraulic oil | Hm32 Anti-wear hydraulic oil | |||
| Motor | Power | KW | 37.5 | 37.5 | ||
| Hydraulic Pressure | Mpa | 30 | 30 | |||
| Mode of Slewing | / | Gear Slewing | Gear Slewing | |||
| Telescopic Cage | / | Included pumpcylinder | Included pumpcylinder | |||
| Mast Section L68A1 | m | (1.6×1.6×3)×10 | (2×2×3)×12 | |||
| Base Section | m | (1.6×1.6×7.5)×1 | (2×2×7.5)×1 | |||
| Application scenario | / | Lattice Type | Lattice Type | |||
Production Information:
Concrete placing boom used to delivery and place the concrete, which is connected with concrete pump. As a auxiliary equipment for concrete pump, it can delivery the concrete quickly and accurately through the connected pipes like a mechanical hand. It also expands the concrete pumping area, and settles the problem of wall pouring effectively, and solves the problem of concrete conveying preferably.
1. It reduce much more labor intensity, improve work and economic efficiency. Compared with traditional manual concrete pouring, the placing boom can reduce labor intensity, greatly accelerate the pouring speed, shorten the construction period, and improve the economic benefit because of the large working range, flexible and convenient operation.
2. Improve the construction quality of concrete. In the process of large area concrete placement, the concrete must be transported through the hopper, so the concrete is easy to lose water and thus affect its quality,and the operation rapidity of placing boom can ensure the concrete quality . Due to the frequently shipment, manual pouring concrete, the labor intensity is too high. After the intensive labor, the worker may not pour concrete strictly according to the construction process requirements, which may lead to man-made construction cold joints. The operation flexibility of placing boom can pour the second layer concrete continually before the last layer concrete become concretionary, which can achieve a molding as far as possible and avoid the construction of cold joints.
3. The placing boom does not contact with the template. So the placing boom makes no vibration to the template, and thus avoids damage to the structure.
4. The placing boom can pour concrete hierarchically and piecewise, so that the template can be uniformly stressed, and the damaged mode is reduced, which is favorable for ensuring the proper size of the structure.
5. After using the placing boom, there is no need to connect and remove the pipes, which reduces the platform operators, neither needs other concrete machines, which also reduces damage of stiffened plate.

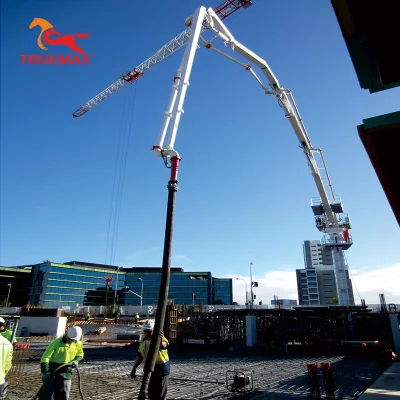

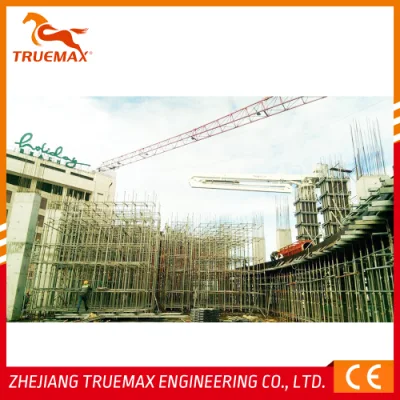

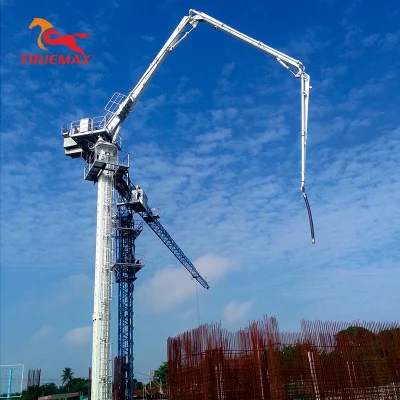

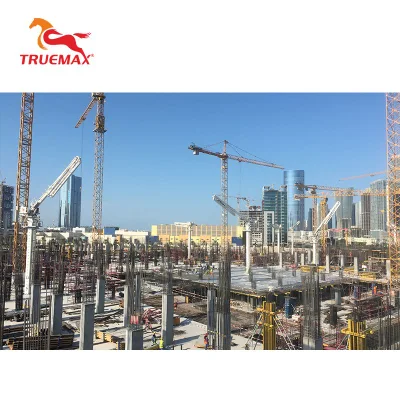

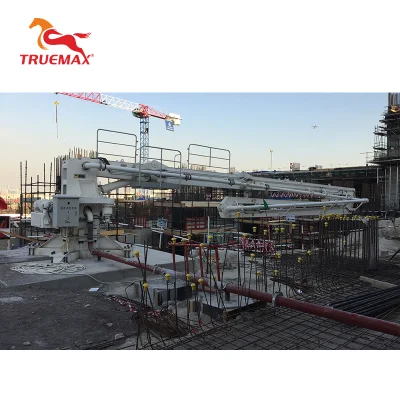

Production Show:
Our Service:
Faster speed of response of service Modern transportation network of railway and aviation,make sure that all spare parts got delivered in time.
Apart from supplying only the best quality products, we also have available our technical and management solutions.
Our service teams always ready to provide expertise to you. Truemax is ready to provide you with a full range of services.
Best service effect to win your satisfaction and trust We continue to work for guests providing customized system solutions and provide best support and services.Because of the formidable technical team, we have provided high quality tour service to all guests.
Company Profile:
Zhejiang Truemax Engineering Co Ltd. is a manufacturer and high-tech enterprise integrating R&D, design, manufacturing and marketing.As the company's core industry,engineering construction machinery currently mainly covers three series:concrete machinery,crushing machinery and construction machineryTruemax insists on a high starting point and high quality, and uses 5% of its sales revenue every year on technologe research and development, trying to making high-end products. In terms of management, Truemax adopts the 6S management system,so quality control is strictly implemented in all aspects of parts procurement, production, packaging and shipment,which makes our products reach the international advanced level.
Truemax actively responds to the national "Made in China 2025" strategy and the call of energy conservation and environmental protection.With the help of the national "One Belt and One Road" strategy, it continues to introduce professional talents and advanced technology. Through unremitting efforts, our services reach every corner of the country. Users anywhere in the country can get thoughtful and meticulous service.
