Basic Info.
Model NO.
SY-5000
Automatic Grade
Automatic
Application
Dairy Products, Vegetable, Fruit, Snack
Usage
Outpacking, Inner Packing
Type
Sealing Machine
Packaging Material Mechanical Properties
Flexible Container Sealing
Material Type
Bulk Solid
Timer
1-10s
Suitable for
PVC Blister Clamshell Paper Cards Sealing
Product Name
Blister Packing Sealing Machine
Key Word
Heat Seal Blister Packaging
Stroke
175mm
Frequency
27.12 MHz
Service
Door to Door Shipping Service
Name
PVC Sealing Sealer Machine
Function
Sealing Machine
After Sale Service
Video and Online Technical Support
Advantage
High Efficiency, Labor Saving
Transport Package
Export Standard Wooden Case Packing
Specification
1000*660*1700 mm 300kg
Trademark
Chanda
Origin
Henan China
HS Code
8438500000
Production Capacity
10000PCS/Year
Product Description

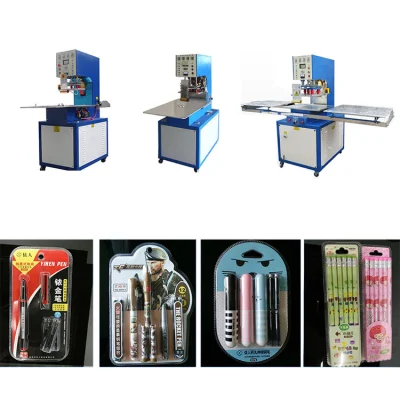

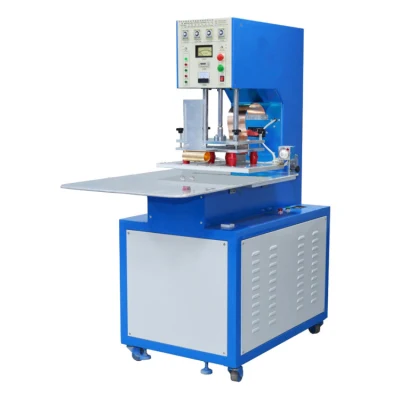

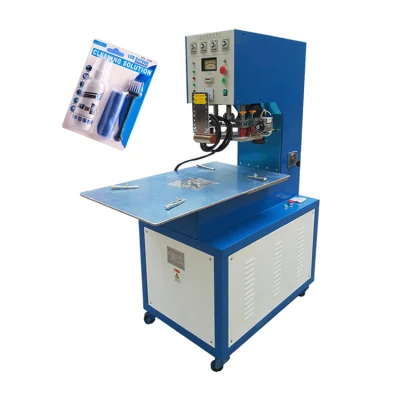

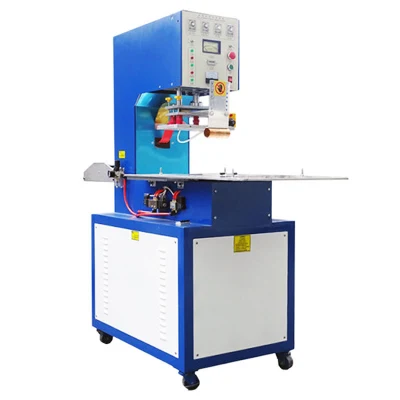

Round table high quality pvc tarpaulin welding machine blister pack sealing machine
4. High Frequency Sealing is fast, usually less than 5 seconds, and the sealed blisters are good-looking.
5. Microcomputer programming system control.
6. Adopting electric motor crawler transmission,cylinder pressure moving.
7. The use of special adjustable heating components,temperature error plus or minus 5 degrees.
8. Custom size work tables and welding platen is available.
DELIVERY TIME
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order.
Answer:
With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price
2). Good customer service: Fast response to any inquiry or question
3). On-time delivery.
Question 2: Are you manufacturer?
Answer: Yes, we are manufacturer with more than 15 years' experience.
Question 3: What are your Price Terms?
Answer: Price can be based on FOB, CFR, or CIF, DDP, DDU,etc.
Question 4: What are your Payment Terms?
Answer: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.
Question 5: What's your Minimum Order Quantity?
Answer: Any order quantity is warmly welcomed.
Question 6: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
Question 7: Can I print my Logo on the machine?
Answer: Yes, sure.
Question 8: Can you customize the machine for me ?
Answer: Yes, we can customize according to customer's requirements.
Question 9: What shall we do if breakdown occurs?
Answer: Please informed us once the breakdown occurs. During warranty period, if breakdown occurs, we shall respond in time after receiving the notification of the buyer. We shall handle failure over the telephone/ fax or arrange relevant personnel to the site according to the buyer's requirements.
Question 10: What are your modes of transportation?
Answer: Courier service, Air transport, Sea Transport.
Question 11: Which ports do you usually ship at?
Answer: We can load container at: Qingdao, Shanghai, Ningbo, Tianjin, Guangzhou etc.
High Frequency Welding Machine (HF Welding) also known as Radio frequency welding machine (RF Welding Machine), it is using the high frequency electromagnetic waves to heat and soften the join of certain plastics, such as PVC, PET, EVA, TPU, etc.
When a press/die descents to apply pressure on the surface of two pieces of material, the high frequency wave are passed through the die and table. The high frequency field causes the molecule to vibrate and generate heat from vibration. The process can be continuous and able to perform localized heating.This machine can seal the edge of the blister clamshell and cut the extra.
High Frequency Welding Machine is ideal for blister packing, especially for double sided blister clamshell of PVC or PET material. Paper cards can be used for high frequency sealing.

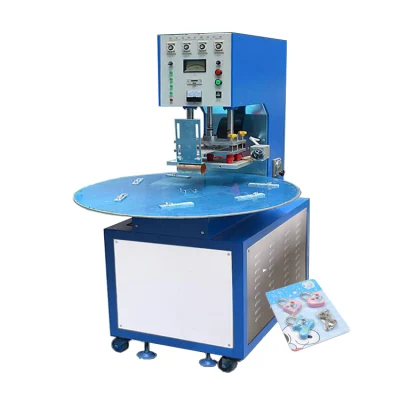

1. Rotary turntable with 2/3/4 working stations working alternately, more efficient.
2. High Sensitive anti-spark tube, to protect the sealing mould.
3. Fast sealing and replaceable mould to suit various sealing size requirement. 4. High Frequency Sealing is fast, usually less than 5 seconds, and the sealed blisters are good-looking.
5. Microcomputer programming system control.
6. Adopting electric motor crawler transmission,cylinder pressure moving.
7. The use of special adjustable heating components,temperature error plus or minus 5 degrees.
8. Custom size work tables and welding platen is available.
| Mold | SY-5000 |
| H.P Power | 5KW |
| Voltage | 380V/50Hz 3 phase/ customized |
| Power input | 8KVA |
| Frequency | 27.12 MHz |
| Upper Electrode | 200*350 mm |
| Lower Electrode | 400*600 mm |
| Stroke | 175mm |
| Timer | 1-10 S |
| Rectifier | Silicon Diode |
| Oscillation Tube | 7T85RB |
| Dimension | 1000*660*1700 mm |
| Weight | 300kg |
PACKAGE
Standard export wooden case /carton packing, fit for multiple handing and long distance air/ marine shipping.DELIVERY TIME
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order.
Question 1: What are your advantages compared with your competitors?
Answer:
With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price
2). Good customer service: Fast response to any inquiry or question
3). On-time delivery.
Question 2: Are you manufacturer?
Answer: Yes, we are manufacturer with more than 15 years' experience.
Question 3: What are your Price Terms?
Answer: Price can be based on FOB, CFR, or CIF, DDP, DDU,etc.
Question 4: What are your Payment Terms?
Answer: Payment shall be made by T/T, L/C, or D/P, etc., it varies considerably according to the region that you are in.
Question 5: What's your Minimum Order Quantity?
Answer: Any order quantity is warmly welcomed.
Question 6: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
Question 7: Can I print my Logo on the machine?
Answer: Yes, sure.
Question 8: Can you customize the machine for me ?
Answer: Yes, we can customize according to customer's requirements.
Question 9: What shall we do if breakdown occurs?
Answer: Please informed us once the breakdown occurs. During warranty period, if breakdown occurs, we shall respond in time after receiving the notification of the buyer. We shall handle failure over the telephone/ fax or arrange relevant personnel to the site according to the buyer's requirements.
Question 10: What are your modes of transportation?
Answer: Courier service, Air transport, Sea Transport.
Question 11: Which ports do you usually ship at?
Answer: We can load container at: Qingdao, Shanghai, Ningbo, Tianjin, Guangzhou etc.
