- Overview
- Product Description
- Product Parameters
Basic Info.
Model NO.
ZTG-1
Welding Turning Rolls Type
Self-Adjusting
Condition
New
Model
Ztg-1
Max Loading Weight
1000kg
Function
Tank Vessesl Automatic Welding Turning Rolls
Usage
Welding and Cutting Turning
Exported to
Canada,USA,Russia,Saudi Arabia,Iraq,Greece,France
Input Voltage
3p 220V-470V 50-60Hz
Wheel Diameter
Polyurethane(PU)/Steel Metal
Roller Linear Speed
100-1000mm/Min
Motor Power
1.5kw
Speed Mode
AC Variable Frequency Stepless Speed Regulation
Certificate
CE ISO
Brand
Lemar
Warranty
1 Year
Wheels Quantity
4 Wheels
Speed Adjust Way
VFD Adjustment
Transport Package
Wooden Box
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Packaging & Delivery
Package Size
55.00cm * 59.00cm * 65.00cm
Package Gross Weight
90.000kg
Product Description

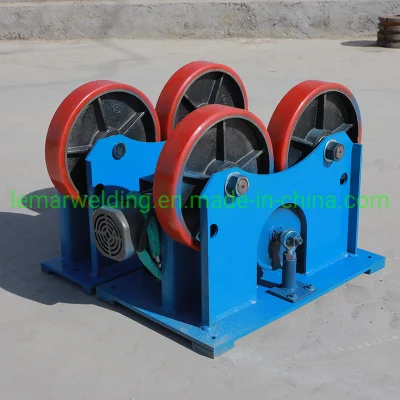

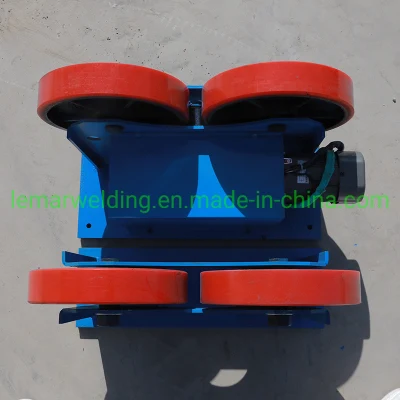

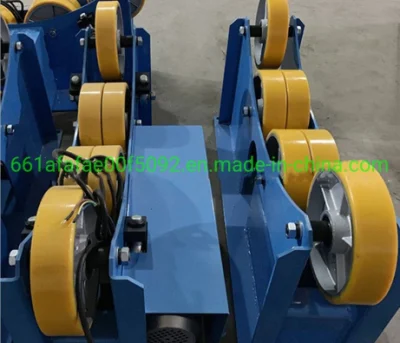

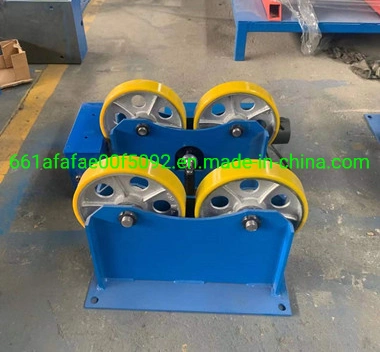

Self-Adjustable Welding Roller For pipe Polyurethane Turning Roller
A rapidly expanding sector, wind power has experienced tremendous expansion in recent years. This business depends on pipelines because they move the energy produced by wind turbines.Rotators for pipeline welding are a crucial piece of equipment utilized in the building of these pipelines.
To provide a uniform and smooth weld, these devices spin the pipeline during welding.
The wind energy industry has seen a revolution thanks to the adoption of pipeline welding rotators, which have improved pipeline construction's efficiency and precision. These tools enable construction businesses to complete projects more quickly, which lowers downtime and boosts production.
The safety of employees when building pipelines has improved thanks to the usage of pipeline welding rotators.
Workers no longer have to physically spin the pipe during welding because the pipeline rotates automatically, lowering the possibility of mishaps and injury.
Model
| Loading Capacity (kg) | Pipe/Tank Diameter (mm) | Rubber Roller Dia. & Width (mm) | Roller Speed (m/h) | Motor Power (kw) |
Speed Adjust
| |
Rubber Roller | Steel Roller | ||||||
| ZTG-1 | 1000 | 20-800 | Φ250*50 | 6-60 | 0.12 | Variable Frequency Drive (VFD)
| |
| ZTG-3 | 3000 | 5V0-1000 | Φ250*50 | 0.12 | |||
ZTG-5 | 5000 | Φ250-2300 | Φ250*100 | Φ240*20*2 | 0.75 | ||
ZTG-10 | 10000 | Φ320-2800 | Φ300*120 | Φ290*25*2 | 1.1 | ||
ZTG-20 | 20000 | Φ500-3500 | Φ350*120 | Φ340*30*2 | 1.5 | ||
ZTG-30 | 30000 | Φ600-3800 | Φ350*120 | Φ340*30*2 | 2.2 | ||
ZTG-40 | 40000 | Φ600-4200 | Φ400*120 | Φ390*40*2 | 3 | ||
ZTG-50 | 50000 | Φ700-4500 | Φ400*120 | Φ390*40*2 | 4 | ||
ZTG-60 | 60000 | Φ750-4800 | Φ450*120 | Φ440*50*2 | 4 | ||
ZTG-80 | 80000 | Φ850-5000 | Φ500*120 | Φ490*60*2 | 5.5 | ||
ZTG-100 | 100000 | Φ1000-5500 | Φ500*120 | Φ490*70*2 | 7.5 | ||
ZTG-150 | 150000 | Φ1100-6000 | Φ500*120 | Φ600*Φ280 | 2*5.5 | ||
| ZTG-250 | 250000 | Φ1200-7000 | / | Φ700*380 | 2*5.5 | ||
| ZTG-500 | 500000 | Φ1800-8000 | / | Φ850*350 | 2*7.5 | ||
Numerous advantages that have greatly aided in the development of the wind energy sector have been brought about by the employment of pipeline welding rotators in this sector. Efficiency, output, and worker safety have all increased. Utilizing this amazing technology will be even more crucial to the industry's success as it grows.
Welding rotator material:
There are several types of materials that welding rotators are designed to handle.
The most common are steel, aluminum, and other metals. In addition, welding rotators are also used to handle plastic, wood, and other materials that require rotation during the welding process.
1.Steel is one of the most commonly used materials in welding rotators due to its durability and strength. Steel is a strong and sturdy material that is used in the construction of heavy machinery, such as welding rotators. The use of steel in welding rotators ensures that they are able to withstand the weight and strain of heavy cylindrical objects during the welding process.
2.Aluminum is another popular material used in welding rotators. Although not as strong as steel, aluminum is lightweight and easy to work with. This makes it an ideal material for welding rotators that need to be moved around frequently.
3.Plastic is also a commonly used material in welding rotators. Plastics are lightweight and easy to handle, making them ideal for use in welding rotators that rotate smaller cylindrical objects.
In conclusion, welding rotators are designed to handle a variety of different materials, including steel, aluminum, plastic, and wood. By automating the welding process, welding rotators can help increase efficiency and improve the quality of work produced. Whether it is a large heavy object or a small cylindrical part, there is always a welding rotator available to get the job done.
Welding rotator material:
There are several types of materials that welding rotators are designed to handle.
The most common are steel, aluminum, and other metals. In addition, welding rotators are also used to handle plastic, wood, and other materials that require rotation during the welding process.
1.Steel is one of the most commonly used materials in welding rotators due to its durability and strength. Steel is a strong and sturdy material that is used in the construction of heavy machinery, such as welding rotators. The use of steel in welding rotators ensures that they are able to withstand the weight and strain of heavy cylindrical objects during the welding process.
2.Aluminum is another popular material used in welding rotators. Although not as strong as steel, aluminum is lightweight and easy to work with. This makes it an ideal material for welding rotators that need to be moved around frequently.
3.Plastic is also a commonly used material in welding rotators. Plastics are lightweight and easy to handle, making them ideal for use in welding rotators that rotate smaller cylindrical objects.
In conclusion, welding rotators are designed to handle a variety of different materials, including steel, aluminum, plastic, and wood. By automating the welding process, welding rotators can help increase efficiency and improve the quality of work produced. Whether it is a large heavy object or a small cylindrical part, there is always a welding rotator available to get the job done.
