Basic Info.
Model NO.
STPWE
Frequency Range
Intermediate Frequency
Electric Current
DC/AC
Pipe Diameter Applicable
DN50-1500
Pipe Wall Thickness Applicable
5-60mm
Materials Applicable
Carbon Steel, Alloy Steel, Stainless Steel and Cry
Welding Line Applicable
Various Welding Lines of Spool Pieces Such as Pipe
Welding Procedure
MIG+Saw or MIG+Saw for Root Pass, Fill in & Final
Trolley System
a Welding System Is Fixed on The Arm of The Trolle
Counterweight System
Nil
Welding Power
Lincoln Welding Power Source (or as Per Customers′
Type
Tube Welders
Current
Pulse Current
Model
TIG/MIG/Fcaw/Saw
Application
Energy Engineering.
Transport Package
Sea Worthy Packing
Specification
SPAWM-24Ab/32Ab/40Ab/48Ab/60Ab
Trademark
QSPT
Origin
Shanghai China
Production Capacity
30sets/Per Month
Packaging & Delivery
Package Size
150.00cm * 150.00cm * 150.00cm
Package Gross Weight
1000.000kg
Product Description
Model: SPAWM-24Ab/32Ab/40Ab/48Ab/60Ab
Performance features
Ø On-line Performance: Good (Designed as per the on line equipment of the production line)
Ø Application: broad (pipe and cover welding of various structures of in various industries).
Ø Welding Efficiency: Excellent (250-500 inch/day, which is 4 times higher than the manual welding)
Ø Operability: very good (applicable and easy to operate even if you are a new user within a short period of time)
Ø Surface finishing: good (the welding gun will always be positioned in the optimum position)
Ø Welding qualification rate: 98% min (without re-working for the skilled operator).
Ø Driving Reliability: good (driven with friction; the necessary balance weight shall be provided for the pipe with DN≥600 and which the wall thickness is ≥40 to balance the serious eccentricity resulted from bending).
u Technical parameters
Ø Pipe diameter applicable: DN150-600 ( φ 159-630mm);DN200-800 ( φ 219-830mm); DN400-1000 ( φ 406-1016); DN600-1200 ( φ 610-1219); DN800-1500 ( φ 813-1524) Or custom made acc to you requirements
Ø Pipe wall thickness applicable: 5-60 (MIG+SAW or TIG+SAW)
Ø Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel
Ø Welds applicable: various welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc (a fake pipe transition connection shall be applied if necessary).

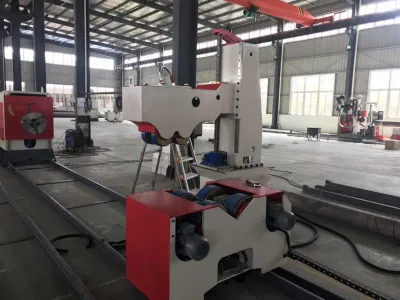

Ø Driving system: Two Row of metal with rubber compound idler wheel driven by motor.

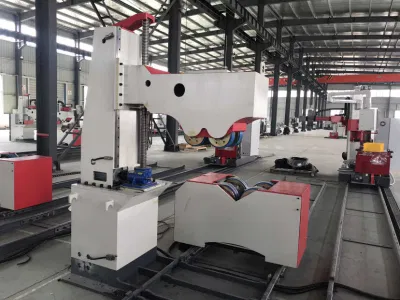

Ø Clamping system: clamping by with boom clamping mechanism

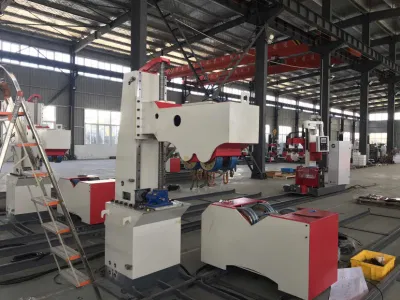

Ø Bracket System: Separate type of trolley matching for welding machine, which may be adjusted along the track according to the length of the pipe.
Ø Counterweight System: Nil
Ø Speed-regulation Mode: VF stepless speed control system

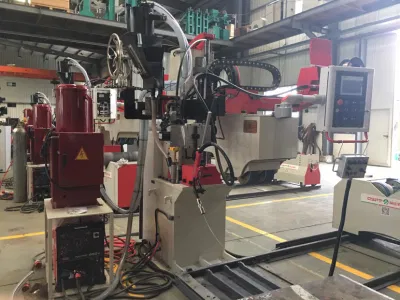

Ø Control system: a product of our patented technology. PLC Control
Ø Welding procedure: MIG+SAW or MIG+SAW for root pass, fill in & final welding; (Proposal to option MIG+SAW)

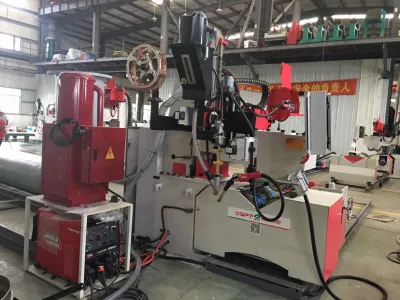

Ø Welding Power: Lincoln Welding Power Source (or as per customers' demands
Performance features
Ø On-line Performance: Good (Designed as per the on line equipment of the production line)
Ø Application: broad (pipe and cover welding of various structures of in various industries).
Ø Welding Efficiency: Excellent (250-500 inch/day, which is 4 times higher than the manual welding)
Ø Operability: very good (applicable and easy to operate even if you are a new user within a short period of time)
Ø Surface finishing: good (the welding gun will always be positioned in the optimum position)
Ø Welding qualification rate: 98% min (without re-working for the skilled operator).
Ø Driving Reliability: good (driven with friction; the necessary balance weight shall be provided for the pipe with DN≥600 and which the wall thickness is ≥40 to balance the serious eccentricity resulted from bending).
u Technical parameters
Ø Pipe diameter applicable: DN150-600 ( φ 159-630mm);DN200-800 ( φ 219-830mm); DN400-1000 ( φ 406-1016); DN600-1200 ( φ 610-1219); DN800-1500 ( φ 813-1524) Or custom made acc to you requirements
Ø Pipe wall thickness applicable: 5-60 (MIG+SAW or TIG+SAW)
Ø Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel
Ø Welds applicable: various welding lines of spool pieces such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange and flange-elbow, etc (a fake pipe transition connection shall be applied if necessary).
Ø Driving system: Two Row of metal with rubber compound idler wheel driven by motor.
Ø Clamping system: clamping by with boom clamping mechanism
Ø Bracket System: Separate type of trolley matching for welding machine, which may be adjusted along the track according to the length of the pipe.
Ø Counterweight System: Nil
Ø Speed-regulation Mode: VF stepless speed control system
Ø Control system: a product of our patented technology. PLC Control
Ø Welding procedure: MIG+SAW or MIG+SAW for root pass, fill in & final welding; (Proposal to option MIG+SAW)
Ø Welding Power: Lincoln Welding Power Source (or as per customers' demands
