Basic Info.
Model NO.
WR20SQ
Welding Turning Rolls Type
Self-Adjusting
Welding Tilter Type
Traditional Special
Condition
New
Transport Package
Nude
Trademark
DESAN
Origin
China
HS Code
84688000
Production Capacity
1000
Product Description

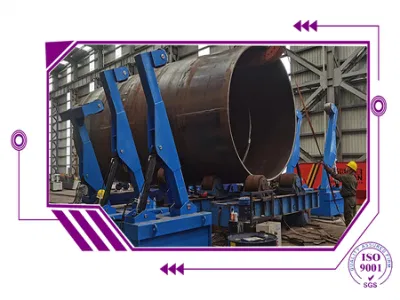

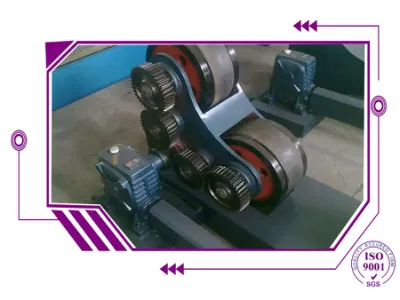

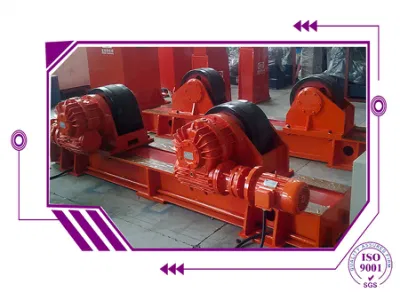

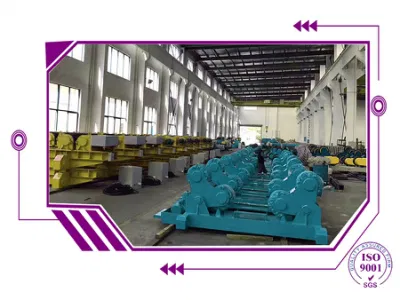

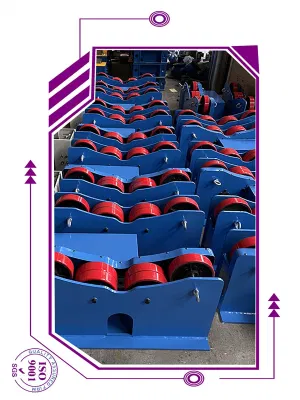

Welding rotator is a kind of our advanced welding equipment , which is be researched and manufactured absorbing domestic and international advanced equipment .it is mainly used for pipe, containers, boilers, pressure vessels, oil tank and other cylinder's assembling, burnishing and welding, can use together with column and boom and SAW system to realize inside and outside girth and longitudinal welding. Its series includes self aligning rotators (SAR), and conventional rotators (WR). Other customize have trolley tilting anti drift rotator; Accordingly this device has advantages of compact structure, small cubage, beautiful shape, lightweight, convenient operating and so on. The machine can assort all kinds of auto welding or manual welding, improving welding quality, lessening welding labor and improve productivity.
We can provide solutions to unique welding rotator according to the customer's requirement
Notes:
a) Variable rotation speed from 100 to 1000 mm/min: included
b) Wheels padded with heavy duty rubber: Included on models SAR 100 and smaller
c) Remote control box with 6-12 m span: included, and allows adjustment of rotating speed -digital display in mm/min-,forward and reverse rotation, and stop
d) Auto adjusted tilt angle of roller bed as per diameter of work piece
e) Shot blasted frame at SA 2 ½: included
f) Variable Frequency Driver (VFD) made by Teco or other brand
g) Custom built welding rotators: available
h) CE mark only under customer request
i) The information contained in this brochure is intended to be accurate. However the manufacturer retain the rights to make changes in design which may not be include
Standard package includes
One power unit with control box
One idler unit
Operation manual
One year warranty
Optional:
+Turning rolls mounted over manual or motorized bogies
+ Synchronized operation of multi number of power rotators
+ Pu roller instead of rubber roller
We can provide solutions to unique welding rotator according to the customer's requirement
| model (HGK##) | max load capacity(tons) | vessel diameterΦd-ΦDmm | diameter and width of wheel | wheel distance adjust way | motor power, kw | wheel speed m/min | Overall Dim. (L*W*H) | G.W (tons) | ||
| Rubber D1*W3(mm) | metal D2*W4(mm) | Power L1*W1*H | Idler L2*W2*H | |||||||
| WR2 | 2 | 250-1800 | 200*80 | 2-190*16 | adjust by manual lead screw or bolt separately | 2*0.18 | 0.1-1 VFD | 1260*500*410 | 1260*350*410 | 0.45 |
| WR3 | 3 | 250-1800 | 200*80 | 2-190*16 | 2*0.25 | 1260*500*410 | 1260*350*410 | 0.50 | ||
| WR5 | 5 | 250-2300 | 250*100 | 2-240*20 | 2*0.37 | 2000*500*480 | 1600*380*480 | 0.90 | ||
| WR10 | 10 | 320-2800 | 300*120 | 2-290*25 | 2*0.55 | 2440*610*550 | 2320*450*550 | 1.6 | ||
| WR20 | 20 | 500-3500 | 350*120 | 2-340*30 | 2*1.1 | 3100*675*660 | 2500*500*660 | 2.0 | ||
| WR40 | 40 | 600-4200 | 400*120 | 2-390*40 | 2*1.5 | 3300*700*720 | 2600*600*720 | 2.5 | ||
| WR60 | 60 | 700-5000 | 450*120 | 2-440*50 | 2*2.2 | 3800*870*830 | 3000*650*830 | 3.1 | ||
| WR80 | 80 | 700-5500 | 500*120 | 2-490*60 | 2*3 | 4380*900*870 | 3400*700*890 | 3.4 | ||
| WR100 | 100 | 700-6000 | 500*120 | 2-490*80 | 2*3 | 4380*970*980 | 3800*760*980 | 5.8 | ||
| WR 150 | 150 | 1000-6000 | / | 500*260 | adjust by bolt separately | 2*4 | 4500*1000*1060 | 4050*800*1060 | 7.5 | |
| WR 250 | 250 | 1000-7500 | / | 660*260 | 2*5.5 | 4900*1060*1100 | 4380*920*1100 | 11.0 | ||
| WR 400 | 400 | 1000-7500 | / | 700*300 | 2*5.5 | 5900*1140*1180 | 5500*920*1180 | 17.5 | ||
| WR 500 | 500 | 1000-8000 | / | 800*350 | 2*7.5 | 6200*1280*1350 | 5700*1000*1350 | 22.3 | ||
| WR 600 | 600 | 1500-8500 | / | 850*360 | 2*7.5 | 6900*1300*1600 | 6000*1200*1600 | 27.5 | ||
| WR 800 | 800 | 1500-9000 | / | 900*380 | 2*11 | 7100*1400*1600 | 6500*1260*1600 | 30.0 | ||
| WR 1000 | 1000 | 1500-10000 | / | 1000*350 | 2*15 | 7500*1600*1700 | 7000*1320*1700 | 40.0 | ||
| WR1200 | 1200 | 1500-12000 | / | 1000*450 | 2*15 | 8380*1600*1800 | 7200*1320*1800 | 51.0 | ||
Notes:
a) Variable rotation speed from 100 to 1000 mm/min: included
b) Wheels padded with heavy duty rubber: Included on models SAR 100 and smaller
c) Remote control box with 6-12 m span: included, and allows adjustment of rotating speed -digital display in mm/min-,forward and reverse rotation, and stop
d) Auto adjusted tilt angle of roller bed as per diameter of work piece
e) Shot blasted frame at SA 2 ½: included
f) Variable Frequency Driver (VFD) made by Teco or other brand
g) Custom built welding rotators: available
h) CE mark only under customer request
i) The information contained in this brochure is intended to be accurate. However the manufacturer retain the rights to make changes in design which may not be include
Standard package includes
One power unit with control box
One idler unit
Operation manual
One year warranty
Optional:
+Turning rolls mounted over manual or motorized bogies
+ Synchronized operation of multi number of power rotators
+ Pu roller instead of rubber roller
