Basic Info.
Model NO.
BWJ-01
Tilting Angle
0-90°
Voltage
110V/220V
Condition
New
Function
Pipe Flange Welding Turning Table
Horizontal Loading Weight
10kg
Vertical Loading Weight
5kg
Table Turning Angle
0-90
Turning Table Rotation Speed
0.2-2 Rpm
Table Diameter
180mm
Table Height
240mm
Flip Angle
0-90
Lead Time
3 Days
Chuck
Optional
Welding Mode
Pipe TIG MIG Welding
Warranty
1 Year
Color
Customized
CE Certificate
Yes
Positioner Rotating Motor
20W
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Production Capacity
3000PCS/Year
Packaging & Delivery
Package Size
37.00cm * 27.00cm * 24.00cm
Package Gross Weight
50.000kg
Product Description

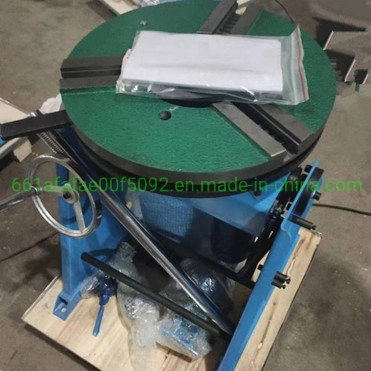

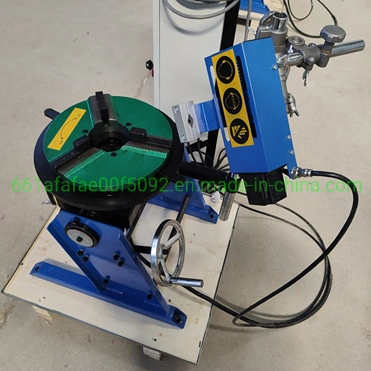

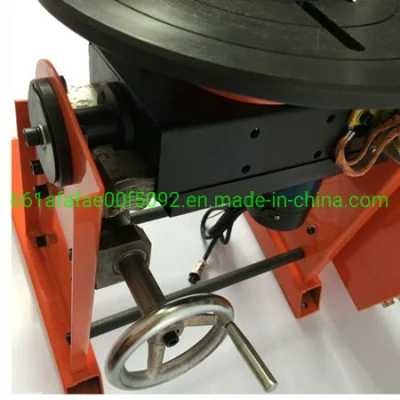

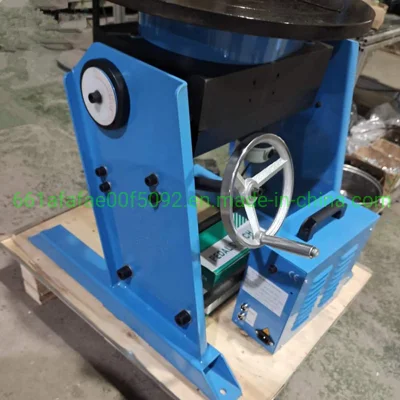

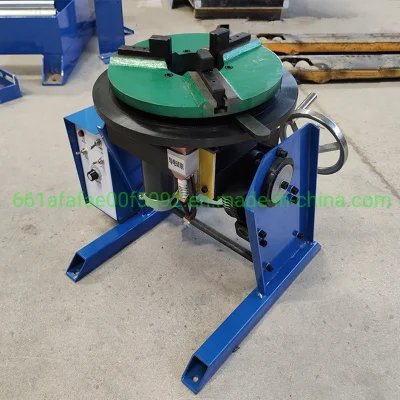

Tilt and Rotary 10kg welding positioner turntable
This professional annular welding equipment, weighing 10 kg, is called a rotary welding positioner.
In order to retain the work components in a horizontal or ship-shaped posture for additional welding, it is mostly utilized to tilt and rotate them.
You can construct clamping tools on this positioner or place a chuck on its work surface while working with hand welding.
To assure auto welding operation, this welding positioner can also be attached to an automatic welding machine.
Specifications:
Features of 10kg rotary welding turning turntables:
With timing function
It has the function of linkage with TIG MIG Laser welding machine
High welding efficiency
The disk surface is made of 45# steel plate, which has high hardness and is not easy to deform
Copper alloy carbon brushes protect the motor and bearings
24 hours non-stop work
This professional annular welding equipment, weighing 10 kg, is called a rotary welding positioner.
In order to retain the work components in a horizontal or ship-shaped posture for additional welding, it is mostly utilized to tilt and rotate them.
You can construct clamping tools on this positioner or place a chuck on its work surface while working with hand welding.
To assure auto welding operation, this welding positioner can also be attached to an automatic welding machine.
Specifications:
| Model | BWJ-01 | Input power | AC220V |
| Horizontal loading | 10KG | Vertical loading | 5KG |
| Work table diameter | 180mm | Work table height | 240mm |
| Rotate speed | 0.2-2rpm | Rotate motor | 20W |
| Flip angle | 0-90° | Flip mode | Manual |
| Oversize | 370L*270W*240H | Weight | 50kg |
| Suitable chuck | KP-65 | Warranty | 1 year |
With timing function
It has the function of linkage with TIG MIG Laser welding machine
High welding efficiency
The disk surface is made of 45# steel plate, which has high hardness and is not easy to deform
Copper alloy carbon brushes protect the motor and bearings
24 hours non-stop work
