Basic Info.
Model NO.
HGK-40
Rollers Width
200mm
Tube Diameter
500-4800mm
Wheel Velocity
6-60m/H
Power of Motor
2*1.5kw
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Loat 40, 000kg
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Months
Product Description
40 Ton Standard Fit-up Growing Line For Assemble And Welding The Pipe And Circuar Seam Welding
Quickly Details: Type:Self-aligning Welding Rotator / Self-aligning Fit-Up Rolls
Brand:MISA
Condition:100% brand new
Model number:HGK
Capacity:5Ton - 150Ton
Consist: (1) Drive unit , (1) Idler unit , (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)

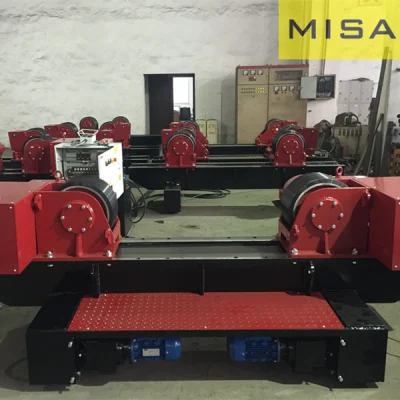

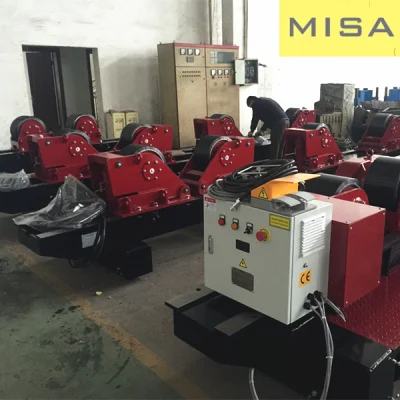

Product Photo:
Product Parameter:
| Type | Max loading (kg) | Vessel diameter(mm) | Dia. and width of the wheel(mm) | Roller linear velocity(m/h) 6-60 | Power of motor(kw) | |
| Rub-ber rollers | Metal rollers | |||||
| HGZ-5 | 5,000 | Φ250-2300 | Φ250×100 | 2×Φ240×20 | 0.75 | |
| HGZ-10 | 10,000 | Φ320-2800 | Φ300×120 | 2×Φ290×25 | 1.1 | |
| HGZ-20 | 20,000 | Φ500-3500 | Φ350×120 | 2×Φ340×30 | 1.5 | |
| HGZ-40 | 40,000 | Φ600-4200 | Φ400×120 | 2×Φ390×40 | 3.0 | |
| HGZ-60 | 60,000 | Φ750-4800 | Φ450×120 | 2×Φ440×50 | 4.0 | |
| HGZ-80 | 80,000 | Φ850-5000 | Φ500×120 | 2×Φ490×60 | 4.0 | |
| HGZ-100 | 100,000 | Φ1000-5500 | Φ500×120 | 2×Φ490×80 | 5.5 | |
| HGZ-150 | 150,000 | Φ1000-6000 | / | Φ620×220 | 5.5 | |
| HGZ-250 | 250,000 | Φ1800-7500 | / | Φ660×260 | 7.5 | |
| HGZ-500 | 500,000 | Φ1800-8000 | / | Φ750×400 | 7.5 | |

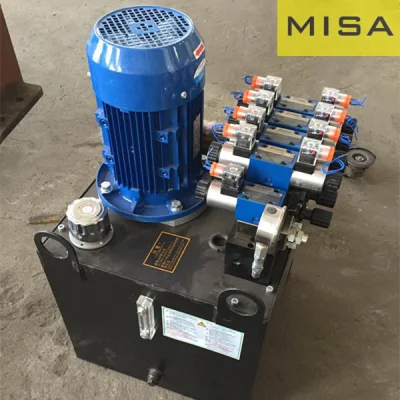

Detail Photo:
Product Description:
The Welding Turning Rolls frame of HGZ series and HGK series designed and manufactured by the company absorbs domestics and overseas advantages of similar products. It is designed and manufactured according to using requirements for pressure vessel manufacturers. The product is applicable for manual welding and automatic welding of metal cylinder. It is featured with advanced technology, reliable quality, easy operation and other advantages.Two groups of roller unit with turn a certain angle are installed on base of drive and idler rotator, two groups of roller unit can turn a certain angle by revolve its mandril, so it can automatic adjusted according to specification of work piece, ensure stable and continuous running of work piece.
Application:
1. Pressure vessels.
2. Pipe manufacturing industries
3. Wind power fabrication
4. Chemical & fuel storage tank fabrication
5. Any heavy cylindrical job
6. Customized special welding rotators according to client's requirements.
Packing and Shipment:
Features:
1. We use Polyurethane roller, Rubber Roller or steel roller which make our machine use longer than others and noise will lower .
2. Our product anti creep function, Hydraulic lifting for fit up pipes, automatic traveling or Manual traveling on the rail .
3. The swing angle of roller group can be automatically regulaterd according to the work piece diameter and size and manual calibration is not needed .
Brand Using:
1. Inverter is made in USA Danfoss / Schneider
2. Motor Brand is UK Invertek / NTK / Siemens / WEG
3. Element is made by Schneider /Siemens
4. Wireless Control box is made by Taiwan by Yuding
5. Bearing is made by NTN
