Basic Info.
Model NO.
WPT600
Certification
ISO 9001:2008
Application
CNC Lathe
Recoverable
Recoverable
Transport Package
Case
Specification
200~1000mm
Trademark
Neutral
Origin
China
HS Code
84662000
Production Capacity
5000PCS/Year
Product Description

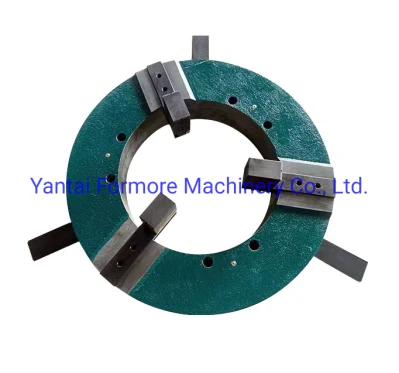

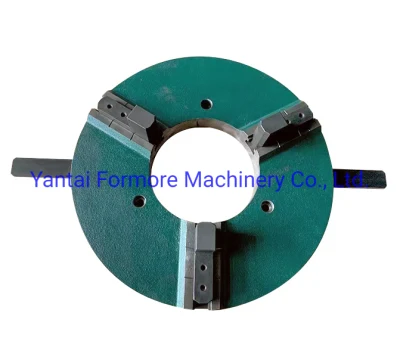

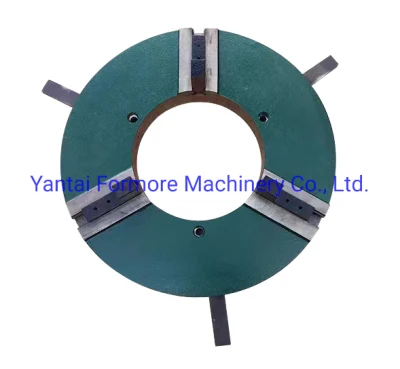

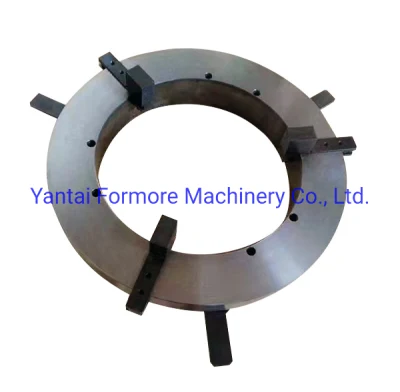

Short cylindrical center mounting.
With compact structure,used easily,high centering accuracy and large clamping range.
Suitable for welding and cutting pipe workpiece.

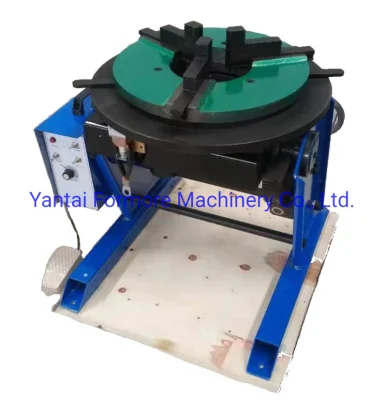

Mainly equipped on the welding machines.
| Model | D1 | D2 | D3 | D4 | H | H1 | H2 | L | z-d1 | z-d |
| WP200A | 65 | 82 | 100 | 200 | 67.5 | 39 | 21 | 180 | 6-M6 | 3-M8 |
| WP200 | 80 | 100 | 120 | 200 | 67.5 | 39 | 21 | 200 | 6-M6 | 3-M8 |
| WP300 | 100 | 120 | 150 | 300 | 67.5 | 39 | 21 | 240 | 6-M6 | 3-M8 |
| WP400 | 170 | 220 | 250 | 400 | 95 | 45 | 25 | 300 | 6-M6 | 3-M10 |
| WP500 | 240 | 280 | 320 | 500 | 110 | 60 | 25 | 350 | 6-M6 | 3-M12 |
| WP500A | 240 | 280 | 320 | 500 | 110 | 60 | 25 | 350 | 6-M6 | 3-M12 |
| WP600 | 365 | 400 | 425 | 600 | 170 | 105 | 40 | 425 | 6-M12 | 6-M12 |
| WP750 | 515 | 542.5 | 570 | 750 | 170 | 105 | 40 | 500 | 6-M12 | 6-M12 |
| Model | clamping force,kg | load,kg | internal jaw clamping range,mm | external jaw clamping range,mm | G.W.kg |
| WP200A | 200 | 30 | 10-130 | 110-210 | 6 |
| WP200 | 200 | 30 | 20-130 | 110-210 | 6 |
| WP300 | 250 | 120 | 80-190 | 170-280 | 12 |
| WP400 | 350 | 240 | 120-250 | 250-380 | 24 |
| WP500 | 800 | 600 | 200-340 | 360-500 | 60 |
| WP500A | 800 | 600 | 40-350 | 220-660 | 60 |
| WP600 | 1200 | 1000 | 150-410 | 400-620 | 91 |
| WP750 | 1400 | 1200 | 380-580 | 550-800 | 150 |
