Basic Info.
Model NO.
BWJ-100R
Condition
New
Model No.
Bwj-100r
Max Load Capacity
100 Kg
Rotating Power
0.75 Kw
Tilting Power
1.1 Kw
Tilting Speed
0-10 Rpm
Input Power
AC220 V
Size of Table
400 mm
Horizontal Loading
100 Kg
Warranty
12 Months
Vertical Loading
50 Kg
After-Sales Service
Video Technical Support
Payment
L/C,T/T
Certificate
CE ISO
Function
Fixed Welding Positioner
Color
Customized
Transport Package
Standard
Trademark
Lemar
Origin
Jiangsu, China
HS Code
8428909090
Product Description

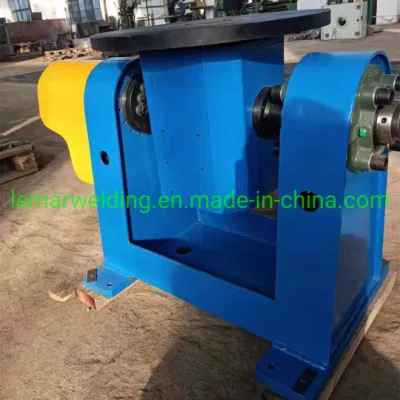

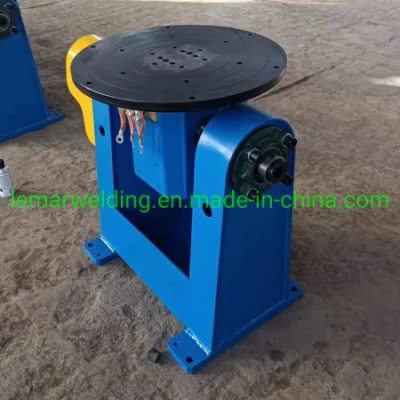

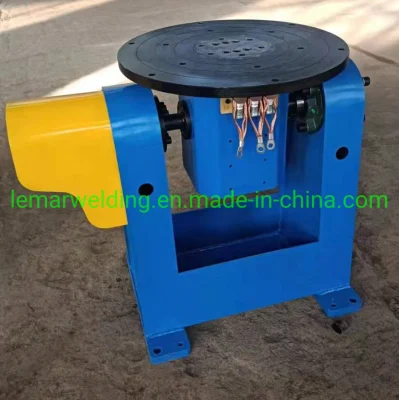

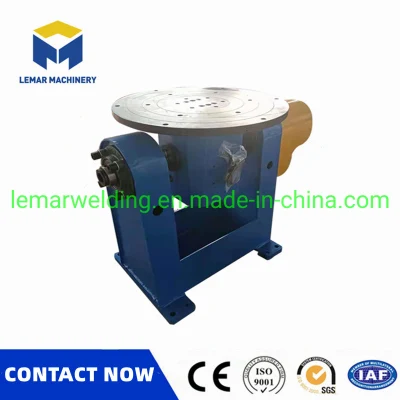

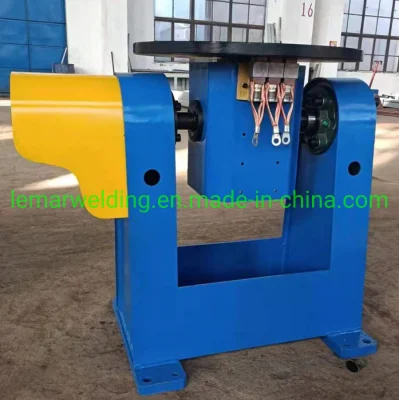

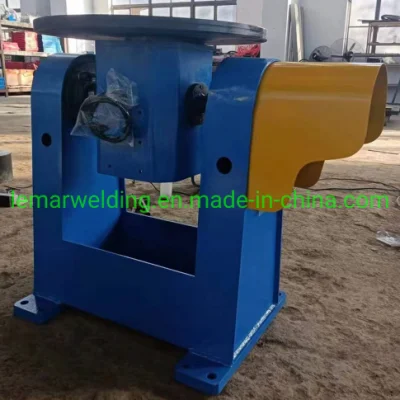

What can robot welding positioner do?
The robot dual-axis welding positioner is suitable for the welding of structural parts where the welds of the workpiece are distributed on multiple surfaces, instead of the traditional welding method of manually turning the workpiece;
The robot automatic welding positioner can ensure fast welding, taking advantage of the fast rotation speed of the servo, which is more conducive to cross welding and reduces the welding deformation of the workpiece.
The electrical technology of the welding positioner is combined with the good communication of the robot, and can be used in conjunction with all robots with open communication.Pipe tank stainless steel Welding positioner, welding turning table is a welding auxiliary equipment that moves the workpiece so that the part to be welded is in a suitable and easy-to-weld position.
The robot dual-axis welding positioner is suitable for the welding of structural parts where the welds of the workpiece are distributed on multiple surfaces, instead of the traditional welding method of manually turning the workpiece;
The robot automatic welding positioner can ensure fast welding, taking advantage of the fast rotation speed of the servo, which is more conducive to cross welding and reduces the welding deformation of the workpiece.
The electrical technology of the welding positioner is combined with the good communication of the robot, and can be used in conjunction with all robots with open communication.Pipe tank stainless steel Welding positioner, welding turning table is a welding auxiliary equipment that moves the workpiece so that the part to be welded is in a suitable and easy-to-weld position.
Specifications of dual axis Robot welding positioner turning table:
| Model | Input power | Positioner Table diameter | Horizontal loading weight | Vertical loading weight | Rotating motor | Rotating speed | Flip motor | Flip speed |
| BWJ-100R | AC220V | 400mm | 100KG | 50KG | 0.75KW | 0-10RPM | 1.1KW | 0-10RPM |
| BWJ-500R | AC380V | 700mm | 500KG | 250KG | 1.1KW | 0-10RPM | 2.2KW | 0-10RPM |
| BWJ-1000R | AC380V | 1000mm | 1000KG | 500KG | 2.0KW | 0-4RPM | 4.0KW | 0-10RPM |
Features of dual axis positioner:
1. Adopt inverter stepless speed regulation, wide speed regulation range and high precision
2. Specially designed grooved steel core rubber surface roller, with large friction, long service life and strong bearing capacity
3. The robot double-axis welding positioner adopts a box-shaped base, which has high rigidity and is more stable.
4. The production process is advanced, and the straightness and parallelism of each shaft hole of the dual-axis robot automatic welding positioner are good, which greatly reduces the movement of the workpiece caused by insufficient production accuracy.
5. The Welding turning table can automatically adjust the angle of the roller bracket according to the diameter of the workpiece, to meet the support, rotation, drive of workpieces with different diameters, and various automatic welding such as TIG MIG SAW MAG.
1. Adopt inverter stepless speed regulation, wide speed regulation range and high precision
2. Specially designed grooved steel core rubber surface roller, with large friction, long service life and strong bearing capacity
3. The robot double-axis welding positioner adopts a box-shaped base, which has high rigidity and is more stable.
4. The production process is advanced, and the straightness and parallelism of each shaft hole of the dual-axis robot automatic welding positioner are good, which greatly reduces the movement of the workpiece caused by insufficient production accuracy.
5. The Welding turning table can automatically adjust the angle of the roller bracket according to the diameter of the workpiece, to meet the support, rotation, drive of workpieces with different diameters, and various automatic welding such as TIG MIG SAW MAG.
