Basic Info.
Model NO.
HBZ
Condition
New
Product Name
Welding Positioner
Color
Blue or as You Request
Overturning Angle of Table
0~90°
Diameter of Table
400mm-2300mm
Function
Automatical Tilting
Power of Rotating Motor
0.18kw
Way of Setting
Frequency Control
Rotating Speed(Rpm)
0.35-3.5
Size of Working Table(mm)
400
Transport Package
Steel Frame
Trademark
Zhouxiang
Origin
China
HS Code
8428909090
Production Capacity
15sets/Month
Product Description
type | Rated load(kg) | Rotating speed(rpm) | Overturning angle(°) | Size of working table(mm) | Motor power | |
rotating | overturning | |||||
HBZ-1 | 100 | 0.12-1.2 | 0-90° | 400 | 0.18 | 0.18 |
HBZ-3 | 300 | 0.2-2 | 0-90° | 600 | 0.37 | 0.37 |
HBZ-6 | 600 | 0.09-0.9 | 0-90° | 1000 | 0.75 | 0.75 |
HBZ-10 | 1000 | 0.05-0.5 | 0-120° | 1200 | 1.1 | 1.5 |
HBZ-30 | 3000 | 0.05-0.5 | 0-120° | 1400 | 1.5 | 1.5 |
HBZ-50 | 5000 | 0.05-0.5 | 0-120° | 1500 | 2.2 | 3 |
HBZ-100 | 10000 | 0.017-0.17 | 0-120° | 2000 | 3 | 5.5 |
HBZ-200 | 20000 | 0.015-0.15 | 0-120° | 2300 | 5.5 | 7.5 |

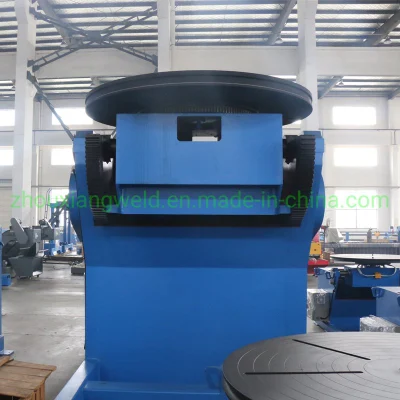

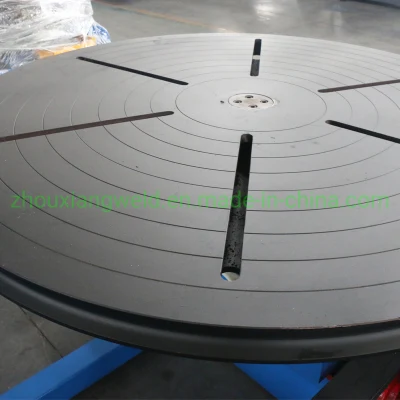

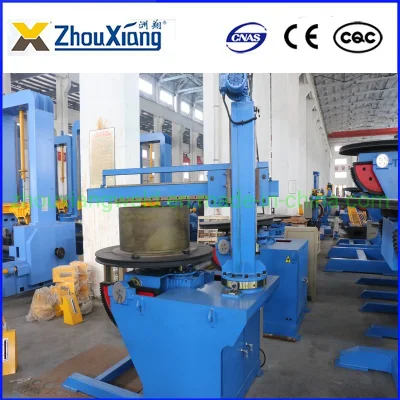

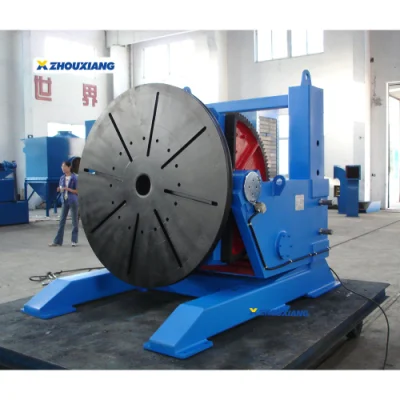

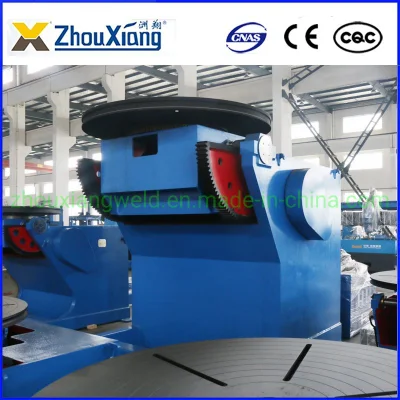

The welding positioner includes various types and it is usually combined with automatic welding system, such as manipulator and welding machine . With gyration and upturning of working table, the welding and fitting can be located at the right position. If connected with other welding devices, it can be turned into a half-automatic or full automatic welding machine. The gyration of working table can use electromagnetic speed variation or frequency control.
Because of eccentricity and gravity, it is better to choose a bigger type for long workpieces or those with too much gravity center deviation.The shape and weight of workpieces, process and working method are provided, our company shall supply a prompt scheme your reference.
Zhouxiang products mainly include CNC flame/plasma cutting machine,H beam light duty production line,H beam heavy duty production line,Horizontal H beam production line,H beam assembly welding straightening integral machine,Corrugated web H beam production line,Box beam production line, Welding manipulator, Rotator, Positioner,Edge milling machine,End face milling machine,Shot blasting machine series,kinds of plate rolling machine,Profile bending machine and welders,fiber laser cutting machine,CO2 laser cutting machine,laser tube cutting machine,Fiber laser cutting robot and Fiber laser welding robot etc.
We have high sincerity to do business with customers all over the world and establish good friendships.
