Basic Info.
Model NO.
HBJ-30
Speed of Table
0.23rpm
Size of Table
1400mm
Turning Power
3kw
Tilt
2.2
Max Gravity Distance
200mm
Max Turning Distance
2100mm
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Load 3, 000kg
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Month
Product Description
Welding Turntable With 1400mm Faceplate For Pipe Flange Elbow Welding And Positioning Equipment
Quickly Details:
Type: Welding Positioner Turntable / Welding Turning Table
Brand:MISA
Condition:100% brand new
Model number:HBJ
Capacity:100kg-200,000 kg
Consist: (1) Main frame (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)

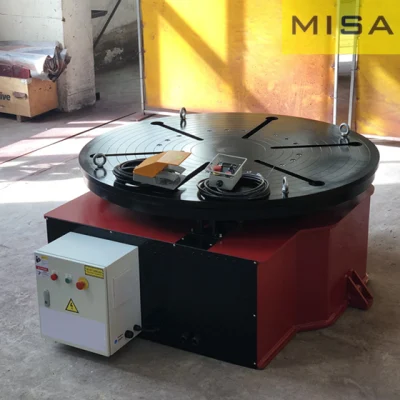

Welding Positioner Turntable Product Photo:
Welding Positioner Turntable Product Parameter:
| Model | Rated load Cap (tons) | Power (kw) | Max Gravity Distance (mm) | Max centroid Eccentricity (mm) | Table | Max Rotation Ф@ 90 degree | Tilt Angle (degree) | |||
| Turning | Tilt | Speed(rpm) | Diameter (mm) | |||||||
| Rotation (variable) | Tilt (constant) | |||||||||
| HBJ-01 | 0.1 | 0.06 | /. | 100 | 150 | 0.40~4.0 | man. | 400 | 600 | 0~90 |
| HBJ-03 | 0.3 | 0.37 | /. | 100 | 150 | 0.10~1.0 | man. | 600 | 800 | 0~90 |
| HBJ-06 | 0.6 | 0.75 | 0.75 | 100 | 150 | 0.09~0.9 | 1.1 | 1000 | 1500 | 0~90 |
| HBJ-12 | 1.2 | 1.1 | 1.5 | 150 | 200 | 0.05~0.5 | 0.67 | 1200 | 2050 | 0~120 |
| HBJ-20 | 2 | 1.1 | 1.5 | 150 | 200 | 0.05~0.5 | 0.23 | 1400 | 2100 | 0~120 |
| HBJ-30 | 3 | 1.5 | 2.2 | 200 | 200 | 0.05~0.5 | 0.23 | 1400 | 2100 | 0~120 |
| HBJ-50 | 5 | 3 | 3 | 300 | 300 | 0.05~0.5 | 0.14 | 1500 | 2500 | 0~120 |
| HBJ-80 | 8 | 3 | 3 | 300 | 300 | 0.05~0.2 | 0.14 | 2000 | 3240 | 0~120 |
| HBJ-100 | 10 | 3 | 4 | 400 | 400 | 0.05~0.2 | 0.14 | 2000 | 3240 | 0~120 |
| HBJ-150 | 15 | 3 | 5.5 | 500 | 200 | 0.05~0.5 | 0.14 | 2200 | 3400 | 0~120 |
| HBJ-200 | 20 | 4 | 7.5 | 630 | 200 | 0.05~0.5 | 0.14 | 2500 | 3400 | 0~120 |

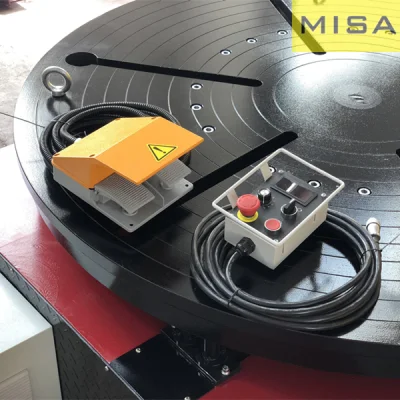

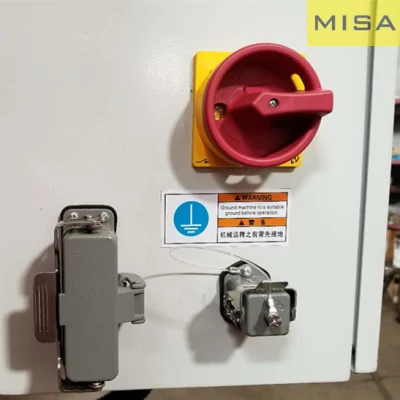

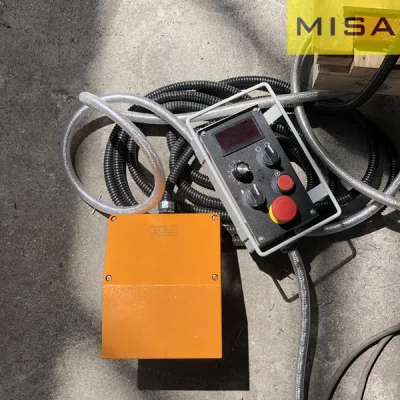

Welding Positioner Turntable Detail Photo:
Welding Positioner Turntable Application:
Welding Turning Tablecan be used at automatic welding or manual welding, such as pipe horizontal welding, tube end welding, axle, tray and barrel, it can be wildly used in the pressure vessels equipment, metallurgy, electric power, chemical machine etc industry.
Welding Positioner Turntable Product Description:
The Welding Turning Table also called welding positioning equipment, is mainly used for some special structures, construction machines, small round workpieces, and more.Welding positioner is generally consists of worktable rotation mechanism, turnover mechanism and electric control system. The workpiece can be reach to the suitable position through worktable rotating and overturning. The worktable rotating controlled by frequency stepless conversion to achieve a best welding speed.
Welding Positioner Turntable Packing and Shipment:
Kindly Noted:
1.You can choose Fixed type or Elevating type .
2.Welding Positioner can tilting from 0° to 120°, rotation 360° via VFD control.
3. Standard Voltage is 380V , 50HZ , 3PH. Other voltage please kindly let us know.
4. Controlled is remote-control box, optional is foot switch
5. If customer need more special requirements , we could study with our engineer.
