Basic Info.
Model NO.
1107B-M PIPE STAND
Customized
Customized
Color
Colorful
Size
Common
Item No.
1107b-M
Max Height Adjustment
23-42 1/2inch/60-108cm
Max Pipe Supporting Capacity
12inch/300mm
Single Package Size
80X25X20 Cm
G.W.
15kgs
Transport Package
Carton
Trademark
WELPING
Origin
China
HS Code
8461909000
Production Capacity
20000/Year
Product Description

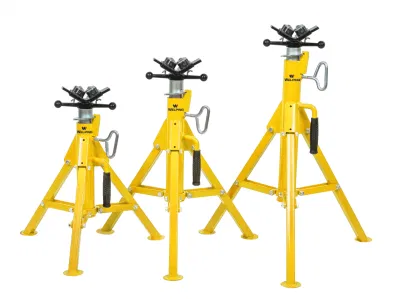

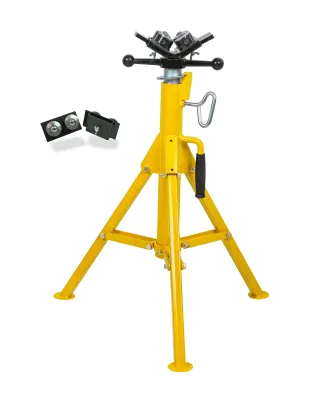

1107B-M Roller HEAD PIPE STAND 2000lb/900kgs; MAX HEIGHT 42 1/2IN.
The pipe jack stand is constructed of premium steel, resistant to rusk and corrosion, durable for a long time.
The height is adjustable(from 23 in to 42 1/2 in) to meet different needs.

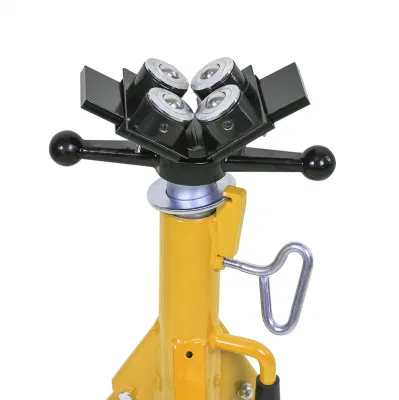

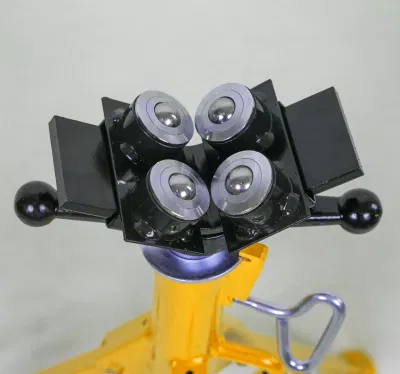

* HEAVY DUTY V-HEAD
* Heavy Duty V-Head: V-head with 4-ball transfer, easy to install. Lock washer ensures safety and large capacity. Lifting weight can be up to 2000lb/900kgs
* PORTABLE & COMPACT DESIGN
The whole stands is folding. Storage won't take your much space. A portable handle wrapped by rubber is also a highlight. Easy carrying and storage.
* GREAT STABILITY
The rounded foot pads of this stand is widened. The strut tension plate for superior lateral support.
Stability is enhanced when you are working in the uneven place.
* WIDE APPLICATION

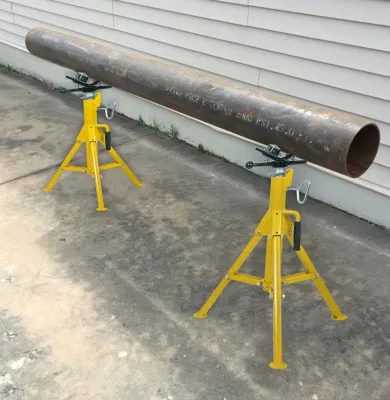

Welding of heavy pipes, shapes, solids and rounds. Support pipe during pipe threading, pipe hole cutting,roll grooving, etc.
The height is adjustable(from 23 in to 42 1/2 in) to meet different needs.
* HEAVY DUTY V-HEAD
* Heavy Duty V-Head: V-head with 4-ball transfer, easy to install. Lock washer ensures safety and large capacity. Lifting weight can be up to 2000lb/900kgs
* PORTABLE & COMPACT DESIGN
The whole stands is folding. Storage won't take your much space. A portable handle wrapped by rubber is also a highlight. Easy carrying and storage.
* GREAT STABILITY
The rounded foot pads of this stand is widened. The strut tension plate for superior lateral support.
Stability is enhanced when you are working in the uneven place.
* WIDE APPLICATION
Welding of heavy pipes, shapes, solids and rounds. Support pipe during pipe threading, pipe hole cutting,roll grooving, etc.
1107B-M Roller Head Pipe Stand
1000 lbs & 23 in to 42 1/2 inch & Folding Design
Designed for quick and easy use, the pipe stand with the V Head features locking rings that allow quick vertical height adjustments from 20 inches to 36 1/2 inches. Max lifting weight can be up to 2000lb/900kgs. As a result, it is well-suited to support pipe during pipe threading, pipe hole cutting, roll grooving, etc.
| Production Specification | |
| Model | 1107B-M |
| Catalog No. | 73091 |
| Height Adjustment Low-High | 23-42 1/2 in./60-108cm |
| Max. Pipe Capacity | 12 in./300mm |
| Max Loading Weight Capacity | 2000lb/900kgs |
| Gross/Net weight | 16/15kgs |
| Packing Size | 80*25*20cm |
