Zhouxiang Finish in Store H Beam Machinery Tag Welding Gantry Welding

Zhouxiang Finish in Store H Beam Machinery Tag Welding Gantry Welding is available at our factory. We specialize in high-quality tag welding gantry welding machinery.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Customers of Zhou Xiang
  • Main Products
  • Company Profile
Overview

Basic Info.

Model NO.
HZJ
Assembly Speed
0.65~6.5m/Min
Transport Package
Wooden Case, Steel Frame
Trademark
Zhouxiang
Origin
China
HS Code
8515319900
Production Capacity
15sets/Month

Product Description

Zhouxiang Finish in Store H Beam Machinery Tag Welding Gantry Welding
Zhouxiang Finish in Store H Beam Machinery Tag Welding Gantry Welding

Model

HZJ1500

HZJ1800

Web height

200~1500mm

200~1800

Web thickness

6~40mm

6~40mm

Flange width

200~800mm

200~1000mm

Flange thickness

6~40mm

6~40mm

Work-piece length

4000~15000mm or as user's request

Assembly speed

0.5~6m/min

Main machine power

5.5kW

Hydraulic station power

4kW

Above are our standard model, it can be designed and manufactured according to customer's request.

Zhouxiang Finish in Store H Beam Machinery Tag Welding Gantry Welding
The vertical assembly machine which the flange,web fastening and calibrating,positioning,and auto spot welding equipped,all of which accept the Japanese Mitsubishi programmable controller and the AC frequency converter so as to increase the productivity one times above comparing with common products,with the features of stable and reliable working state and the welding gun is equipped by the arc-tracing device to ensure the quality of spot welding.
Zhouxiang Finish in Store H Beam Machinery Tag Welding Gantry Welding

The material of pressing wheel, guiding wheel and main transmission wheel is 40Cr, with high frequency quenching process on the surface, has the advantages of good abrasion resistance and long service time. The main transmission wheel uses integral forging process with good pressure resistance and high abrasion resistance.
Zhouxiang Finish in Store H Beam Machinery Tag Welding Gantry Welding

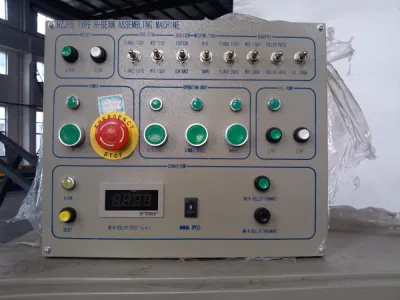

The automatic centering of flange and web adopts hydraulic motor and gear, with high centering precision and good retentivity. All of the operation are centralized on the electric control button panel, with easy and convenient operation and precise positioning.
Zhouxiang Finish in Store H Beam Machinery Tag Welding Gantry Welding
The main transmission part adopts cycloid pinwheel and Taiwan TAIAN brand inverter, the assembly speed can be adjusted between 0.5-6 M/min.
Zhouxiang Finish in Store H Beam Machinery Tag Welding Gantry Welding
It adopts synchronous clamping system to realize flange and web primary centering, which can fundamentally slow down and avoid the phenomenon of H beam tail wagging during assembly.
Zhouxiang Finish in Store H Beam Machinery Tag Welding Gantry Welding
This machine adopts centralized lubrication system, it can ensure that the wide distributed lubrication points can be lubricated well, and realize the purpose of good lubrication, reducing abrasion and prolong service life of the equipment.
Zhouxiang Finish in Store H Beam Machinery Tag Welding Gantry Welding

Customers of Zhou Xiang

Zhouxiang Finish in Store H Beam Machinery Tag Welding Gantry Welding

Main Products

Zhouxiang Finish in Store H Beam Machinery Tag Welding Gantry WeldingZhouxiang Finish in Store H Beam Machinery Tag Welding Gantry Welding

Company Profile

Zhouxiang Finish in Store H Beam Machinery Tag Welding Gantry Welding

Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including  Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include CNC flame/plasma cutting machine,H beam light duty production line,H beam heavy duty production line,Horizontal H beam production line,H beam assembly welding straightening integral machine,Corrugated web H beam production line,Box beam production line, Welding manipulator, Rotator, Positioner,Edge milling machine,End face milling machine,Shot blasting machine series,kinds of plate rolling machine,Profile bending machine and welders,fiber laser cutting machine,CO2 laser cutting machine,laser tube cutting machine,Fiber laser cutting robot and Fiber laser welding robot etc.
We have high sincerity to do business with customers all over the world and establish good friendships.
Zhouxiang Finish in Store H Beam Machinery Tag Welding Gantry WeldingZhouxiang Finish in Store H Beam Machinery Tag Welding Gantry WeldingZhouxiang Finish in Store H Beam Machinery Tag Welding Gantry WeldingZhouxiang Finish in Store H Beam Machinery Tag Welding Gantry WeldingZhouxiang Finish in Store H Beam Machinery Tag Welding Gantry WeldingZhouxiang Finish in Store H Beam Machinery Tag Welding Gantry Welding
